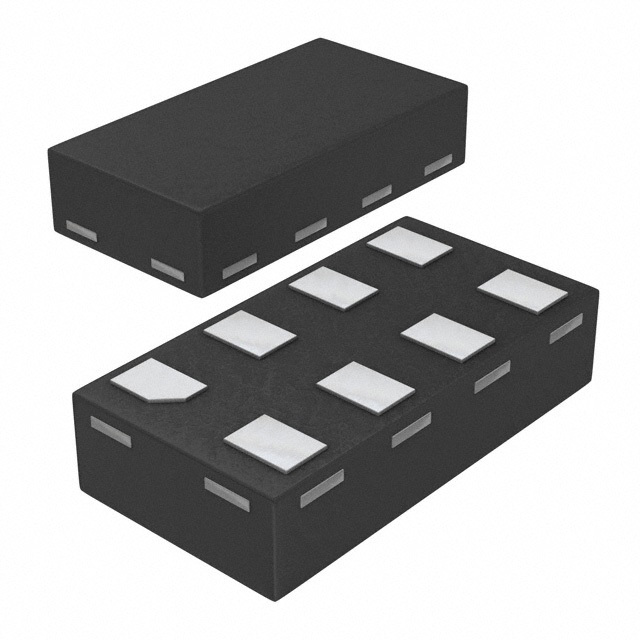

74LVC2G125HD4-7

SKU: 130575

Manufacturer: Diodes Incorporated

Buffer/Line Driver 2-CH Non-Inverting 3-ST CMOS 8-Pin X2-DFN T/R

1900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	LVC
Logic Function	Buffer/Line Driver
Number of Elements per pcs	2
Number of Channels per Chip	2
Number of Inputs per Chip	2
Number of Input Enables per Chip	0
Number of Outputs per Chip	2
Number of Output Enables per Chip	2 Low
Bus Hold	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	6@2.7V
Absolute Propagation Delay Time (ns)	14.1
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	32
Maximum High Level Output Current (mA)	-32
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Tolerant I/Os (V)	5
Typical Quiescent Current (uA)	0.1
Maximum Quiescent Current (uA)	40
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	X2-DFN
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.35(Max)
Package Length	2
Package Width	1
PCB changed	8
