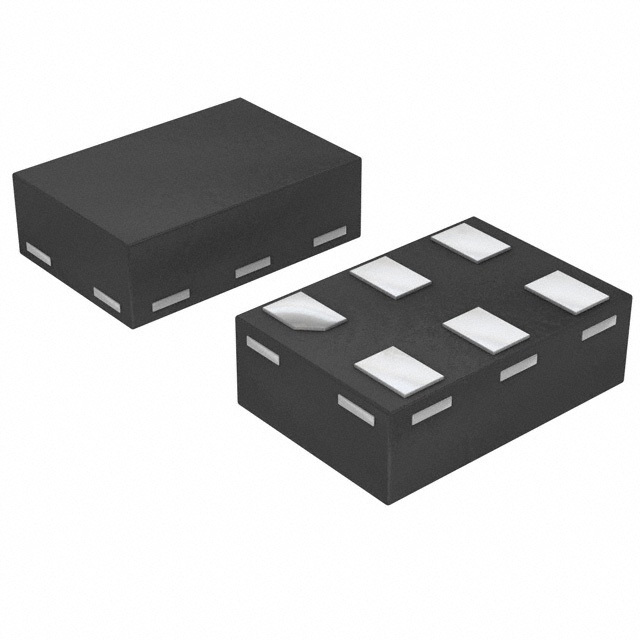

74LVC1G07FW5-7

SKU: 144717

Manufacturer: Diodes Incorporated

Buffer/Driver 1-CH Non-Inverting Open Drain CMOS 6-Pin X1-DFN T/R

1320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	LVC
Logic Function	Buffer/Driver
Number of Elements per pcs	1
Number of Channels per Chip	1
Number of Inputs per Chip	1
Number of Input Enables per Chip	0
Number of Outputs per Chip	1
Number of Output Enables per Chip	0
Bus Hold	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	2.5(Typ)@2.7V
Absolute Propagation Delay Time (ns)	8.5
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	Open Drain
Maximum Low Level Output Current (mA)	32
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Tolerant I/Os (V)	5.5 Inputs
Maximum Quiescent Current (uA)	200
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	DFN
Original Package	X1-DFN
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.46(Max)
Package Length	1
Package Width	1
PCB changed	6
