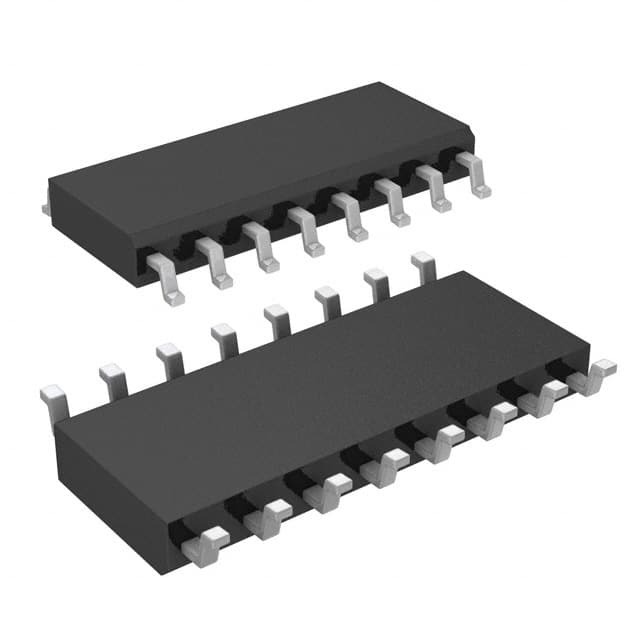

74HC594S16-13

SKU: 102131

Manufacturer: Diodes Incorporated

Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin SO T/R

2270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	HC
Logic Function	Shift Register
Operation Mode	Serial to Serial/Parallel
Number of Elements per pcs	1
Number of Element Inputs	1
Number of Count Input Enables	0
Number of Selection Inputs per Element	0
Number of Element Outputs	9
Number of Stages	8
Direction Type	Uni-Directional
Triggering Type	Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	150@2V
Absolute Propagation Delay Time (ns)	225
Process Technology	CMOS
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	6
Maximum Quiescent Current (mA)	0.008
Propagation Delay Test Condition (pF)	50
Parallel Enable Input	No
Terminal Count Output	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SO
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	10(Max)
Package Width	4(Max)
