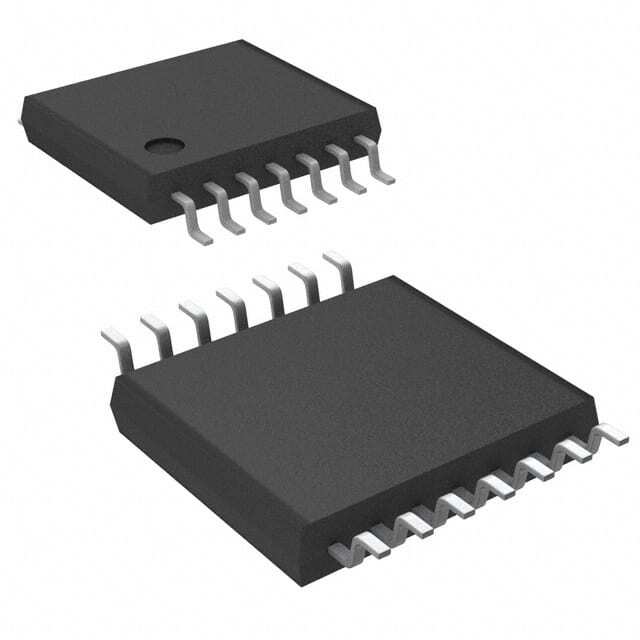

74HC125T14-13

SKU: 93404

Manufacturer: Diodes Incorporated

Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP T/R

2990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Logic Family	HC
Logic Function	Buffer/Line Driver
Number of Elements per pcs	4
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Input Enables per Chip	0
Number of Outputs per Chip	4
Number of Output Enables per Chip	4 Low
Bus Hold	No
Polarity	Non-Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	100@2V
Absolute Propagation Delay Time (ns)	190
Process Technology	CMOS
Input Signal Type	Single-Ended
Output Type	3-State
Maximum Low Level Output Current (mA)	5.2
Maximum High Level Output Current (mA)	-5.2
Operating Supply Voltage-Min (V)	2
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	6
Maximum Quiescent Current (uA)	4
Propagation Delay Test Condition (pF)	50
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	14
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
