    74AUP2G34FW4-7

    SKU: 151827
    Manufacturer: Diodes Incorporated

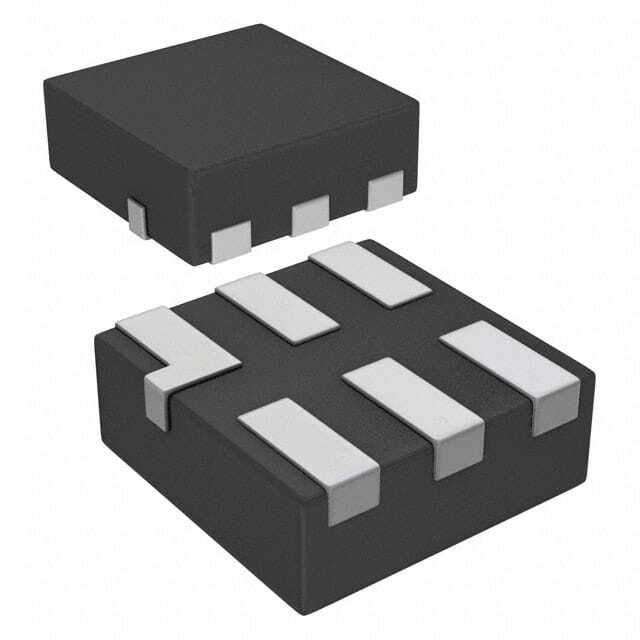

    Buffer 2-CH Non-Inverting CMOS 6-Pin X2-DFN T/R
    3360 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Logic Family AUP
    Logic Function Buffer
    Number of Elements per pcs 2
    Number of Channels per Chip 2
    Number of Inputs per Chip 2
    Number of Input Enables per Chip 0
    Number of Outputs per Chip 2
    Number of Output Enables per Chip 0
    Bus Hold No
    Polarity Non-Inverting
    Maximum Propagation Delay Time @ Maximum CL (ns) 16.3@1.1V to 1.3V
    Absolute Propagation Delay Time (ns) 20.8
    Process Technology CMOS
    Input Signal Type Single-Ended
    Maximum Low Level Output Current (mA) 4
    Maximum High Level Output Current (mA) -4
    Operating Supply Voltage-Min (V) 0.8
    Typical Operating Supply Voltage (V) 1.8
    Operating Supply Voltage-Max (V) 3.6
    Maximum Quiescent Current (uA) 0.5
    Propagation Delay Test Condition (pF) 30
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Packing Method Tape and Reel
    Standard Package Method DFN
    Original Package X2-DFN
    Pin Count 6
    Terminal Form Surface Mount
    Package Height 0.37
    Package Length 1
    Package Width 1
    PCB changed 6
