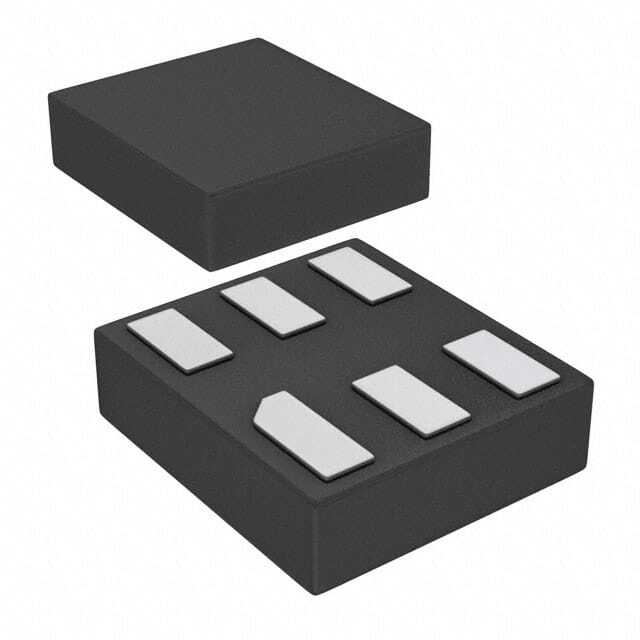

74AUP2G04FW3-7 Diodes Incorporated

74AUP2G04FW3-7

SKU: 24382

Manufacturer: Diodes Incorporated

Inverter 2-Element CMOS 6-Pin X2-DFN T/R

Download sample

Request Free Samples

1000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	AUP
Logic Function	Inverter
Number of Elements per pcs	2
Maximum Propagation Delay Time @ Maximum CL (ns)	5.4@3V to 3.6V
Absolute Propagation Delay Time (ns)	23
Process Technology	CMOS
Maximum Low Level Output Current (mA)	4
Maximum High Level Output Current (mA)	-4
Operating Supply Voltage-Min (V)	0.8
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Quiescent Current (uA)	0.5
Propagation Delay Test Condition (pF)	30
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	X2-DFN
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.28
Package Length	0.9
Package Width	1
PCB changed	6
