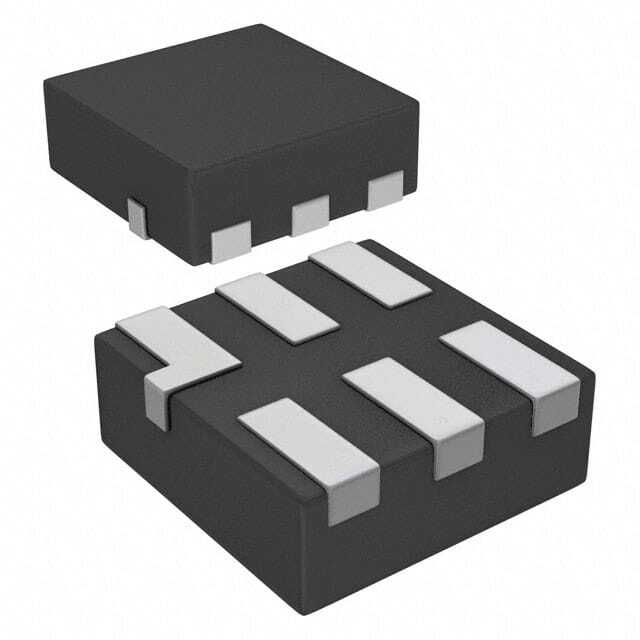

74AUP1G00FW4-7 Diodes Incorporated

74AUP1G00FW4-7

SKU: 15748

Manufacturer: Diodes Incorporated

NAND Gate 1-Element 2-IN CMOS 6-Pin X2-DFN T/R

Download sample

Request Free Samples

3640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	AUP
Logic Function	NAND
Number of Elements per pcs	1
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	22@1.1V to 1.3V
Absolute Propagation Delay Time (ns)	24.9
Process Technology	CMOS
Maximum Low Level Output Current (mA)	4
Maximum High Level Output Current (mA)	-4
Operating Supply Voltage-Min (V)	0.8
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Maximum Quiescent Current (uA)	0.5
Propagation Delay Test Condition (pF)	30
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	DFN
Original Package	X2-DFN
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.37
Package Length	1
Package Width	1
PCB changed	6
