74AHCT595T16-13

SKU: 93402

Manufacturer: Diodes Incorporated

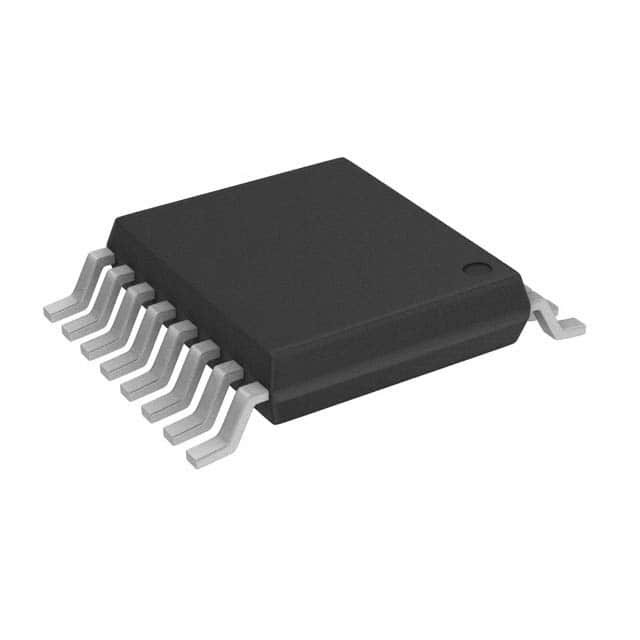

Shift Register Single 8-Bit Serial to Serial/Parallel 16-Pin TSSOP T/R

2970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Logic Family	AHCT
Logic Function	Shift Register
Operation Mode	Serial to Serial/Parallel
Number of Elements per pcs	1
Number of Element Inputs	1
Number of Count Input Enables	0
Number of Selection Inputs per Element	0
Number of Element Outputs	9
Number of Stages	8
Direction Type	Uni-Directional
Triggering Type	Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns)	10@4.5V to 5.5V
Absolute Propagation Delay Time (ns)	14.5
Process Technology	CMOS
Output Type	3-State
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Quiescent Current (mA)	0.004
Propagation Delay Test Condition (pF)	50
Parallel Enable Input	No
Terminal Count Output	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.93(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
