2N7002DW-7-F

SKU: 9781

Manufacturer: Diodes Incorporated

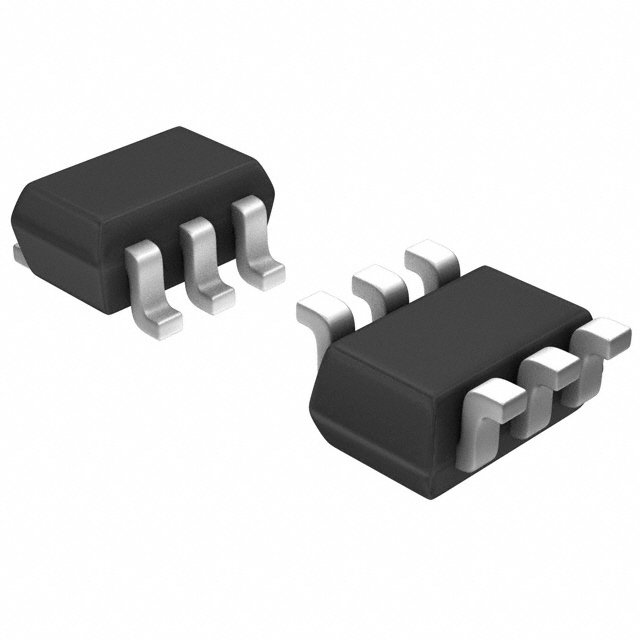

Trans MOSFET N-CH 60V 0.23A 6-Pin SOT-363 T/R

4380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	0.23
Maximum Gate Source Leakage Current (nA)	10
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	7500@5V
Typical Input Capacitance @ Vds (pF)	22@25V
Typical Reverse Transfer Capacitance @ Vds (pF)	2@25V
Minimum Gate Threshold Voltage (V)	1
Typical Output Capacitance (pF)	11
Maximum Power Dissipation (mW)	400
Typical Turn-Off Delay Time (ns)	11
Typical Turn-On Delay Time (ns)	7
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Maximum Positive Gate Source Voltage (V)	20
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	0.23
Maximum Power Dissipation on PCB @ TC=25°C (W)	0.4
Maximum Pulsed Drain Current @ TC=25°C (A)	0.8
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	318
Typical Diode Forward Voltage (V)	0.78
Maximum Diode Forward Voltage (V)	1.5
Pin Count	6
Standard Package Method	SOT
Original Package	SOT-363
Terminal Form	Surface Mount
Package Height	0.95
Package Length	2.15
Package Width	1.3
PCB changed	6
