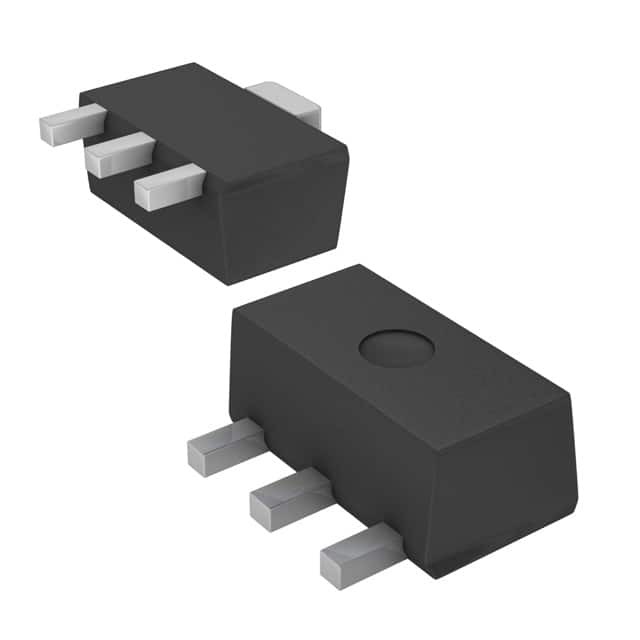

2DC4672-13

SKU: 7536

Manufacturer: Diodes Incorporated

Trans GP BJT NPN 50V 3A 2000mW 4-Pin(3+Tab) SOT-89 T/R

20080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	60
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	7
Operating Junction Temperature (°C)	-55 to 150
Maximum Base Current (A)	0.5
Maximum Collector-Emitter Saturation Voltage (V)	0.35@50mA@1A
Maximum DC Collector Current (A)	3
Minimum DC Current Gain	45@1.5A@2V
Maximum Power Dissipation (mW)	2000
Maximum Transition Frequency (MHz)	180(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-89
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.6(Max)
Package Length	4.6(Max)
Package Width	2.6(Max)
PCB changed	3
Tab	Tab
