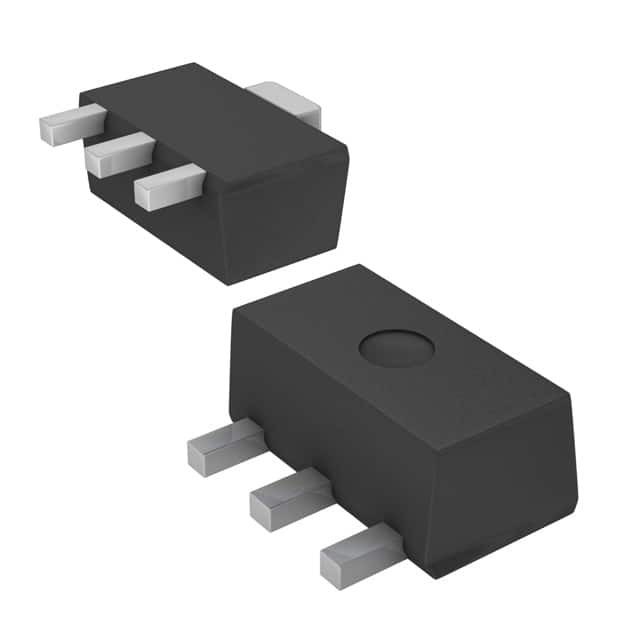

2DA1797-13

SKU: 8235

Manufacturer: Diodes Incorporated

Trans GP BJT PNP 50V 3A 2000mW 4-Pin(3+Tab) SOT-89 T/R

310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	50
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	6
Maximum Collector-Emitter Saturation Voltage (V)	0.35@50mA@1A
Maximum DC Collector Current (A)	3
Minimum DC Current Gain	82@500mA@2V
Maximum Power Dissipation (mW)	2000
Maximum Transition Frequency (MHz)	160(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Pin Count	4
Standard Package Method	SOT
Original Package	SOT-89
Terminal Form	Surface Mount
Package Height	1.6(Max)
Package Length	4.6(Max)
Package Width	2.6(Max)
PCB changed	3
Tab	Tab
