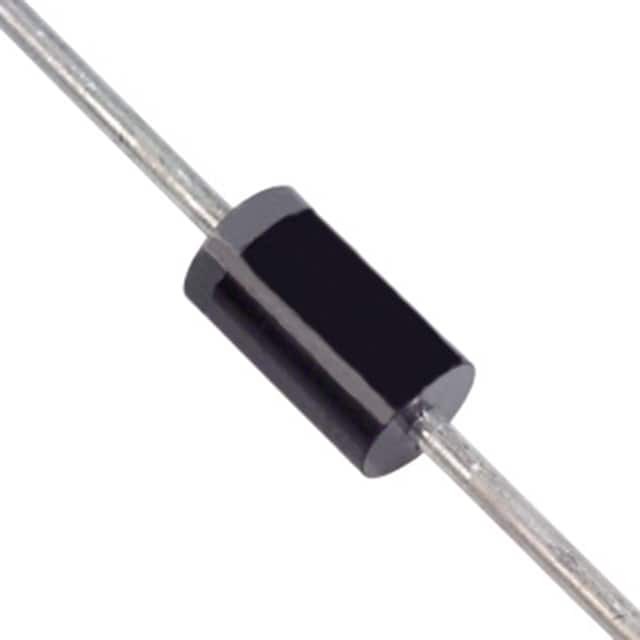

1N5822-B

SKU: 7018

Manufacturer: Diodes Incorporated

Rectifier Diode Schottky 40V 3A 2-Pin DO-201AD Bulk

2290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	40
Configuration	Single
Peak Reverse Repetitive Voltage (V)	40
Maximum Continuous Forward Current (A)	3
Peak Non-Repetitive Surge Current (A)	80
Peak Forward Voltage (V)	0.95@9.4A
Peak Reverse Current (uA)	2000
Maximum Junction Ambient Thermal Resistance	40°C/W(Typ)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Bulk
Original Package	DO-201AD
Pin Count	2
Standard Package Method	DO-201-AD
Diameter	5.3(Max)
Terminal Form	Through Hole
Package Length	9.5(Max)
PCB changed	2
