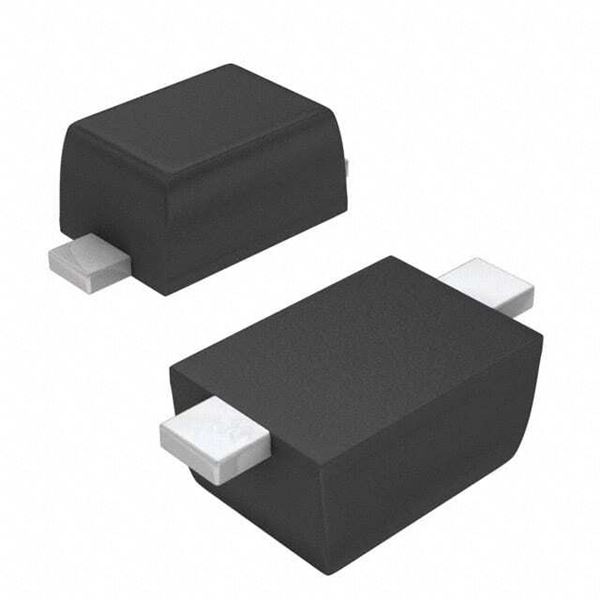

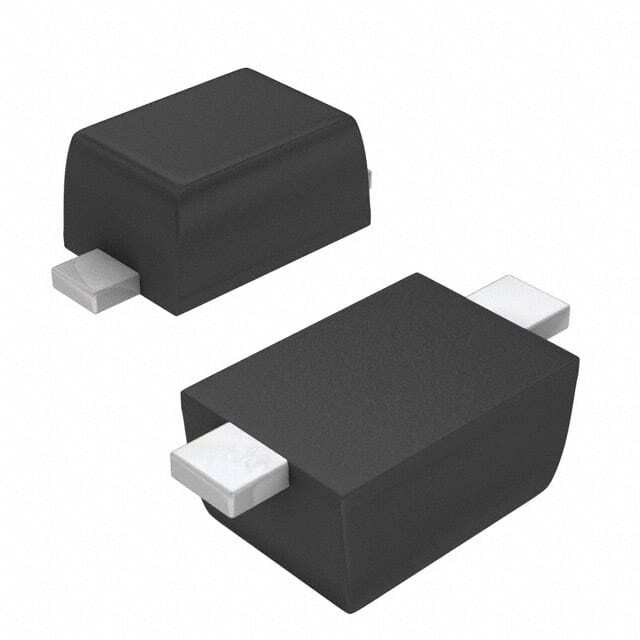

1N4148WT-7

SKU: 8412

Manufacturer: Diodes Incorporated

Rectifier Diode Small Signal Switching 0.25A 4ns 2-Pin SOD-523 T/R

1119740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Small Signal Switching Diode
Maximum DC Reverse Voltage (V)	80
Configuration	Single
Maximum Continuous Forward Current (A)	0.25
Peak Non-Repetitive Surge Current (A)	2
Peak Forward Voltage (V)	1.25@0.15A
Peak Reverse Current (uA)	1@75V
Maximum Junction Ambient Thermal Resistance	833°C/W
Maximum Diode Capacitance (pF)	2
Maximum Power Dissipation (mW)	150
Peak Reverse Recovery Time (ns)	4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum RMS Reverse Voltage (V)	53
Pin Count	2
Standard Package Method	SOD
Original Package	SOD-523
Terminal Form	Surface Mount
Package Height	0.65(Max)
Package Length	1.25(Max)
Package Width	0.85(Max)
PCB changed	2
