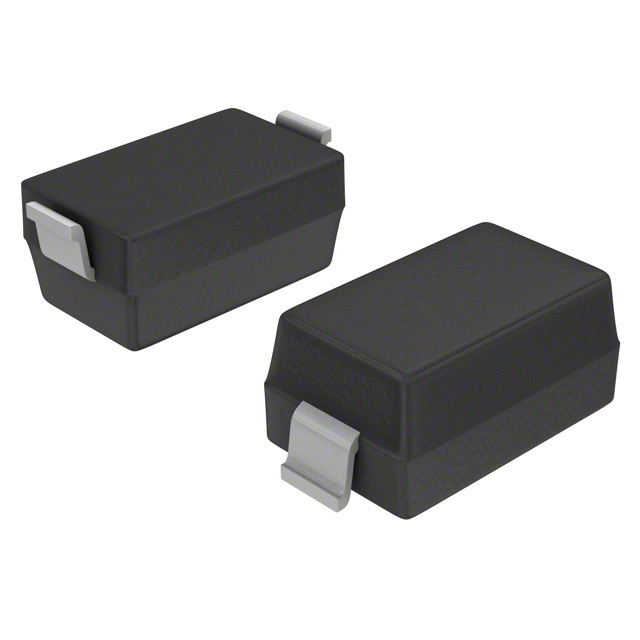

1N4148W-13

SKU: 93298

Manufacturer: Diodes Incorporated

Rectifier Diode Small Signal Switching 100V 0.3A 4ns 2-Pin SOD-123 T/R

1080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Small Signal Switching Diode
Maximum DC Reverse Voltage (V)	100
Configuration	Single
Peak Reverse Repetitive Voltage (V)	100
Maximum Continuous Forward Current (A)	0.3
Peak Non-Repetitive Surge Current (A)	2
Peak Forward Voltage (V)	1.25@0.15A
Peak Reverse Current (uA)	1@75V
Maximum Junction Ambient Thermal Resistance	315°C/W
Maximum Diode Capacitance (pF)	2
Maximum Power Dissipation (mW)	400
Peak Reverse Recovery Time (ns)	4
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum RMS Reverse Voltage (V)	71
Original Package	SOD-123
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	1.05
Package Length	2.65
Package Width	1.55
PCB changed	2
