597-7701-202F

SKU: 86398

Manufacturer: Dialight

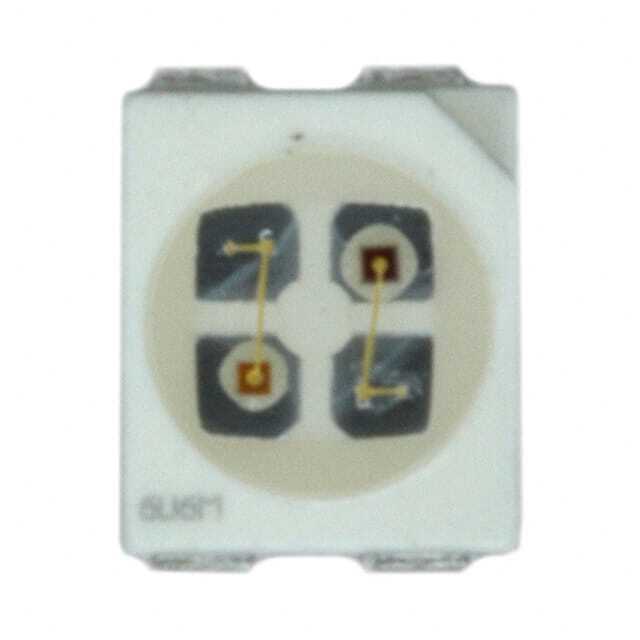

LED Bi-Color Green/Red 565nm/630nm 4-Pin SMD Strip

880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Bi-Color
Product Category	Chip LED
Color	Green/Red
Number of LEDs	1
Lens Shape Type	Circular
Lens Dimensions (mm)	2.39x2.39x0.95
Lens Appearance	Non Diffused
Mounting Orientation	Top Mount
Intensity	16mcd
Dominant Wavelength (nm)	570/628
Peak Wavelength (nm)	565/630
Viewing Angle (°)	120
Maximum Forward Current (mA)	30
Test Current (mA)	10
Maximum Forward Voltage (V)	2.6
Reverse Voltage (V)	5
Typical Forward Voltage (V)	2.1/2
Internal Protection	No
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-55
Operating Temperature-Max	100
Lead Standoff	No
Supplier Color	Green/Red
Special Color	Green/Red
High Power	No
High Brightness	No
Packing Method	Strip
Original Package	SMD
Pin Count	4
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	1.8
Package Length	2.79
Package Width	3.2
PCB changed	4
