592-2631-313F

SKU: 24331

Manufacturer: Dialight

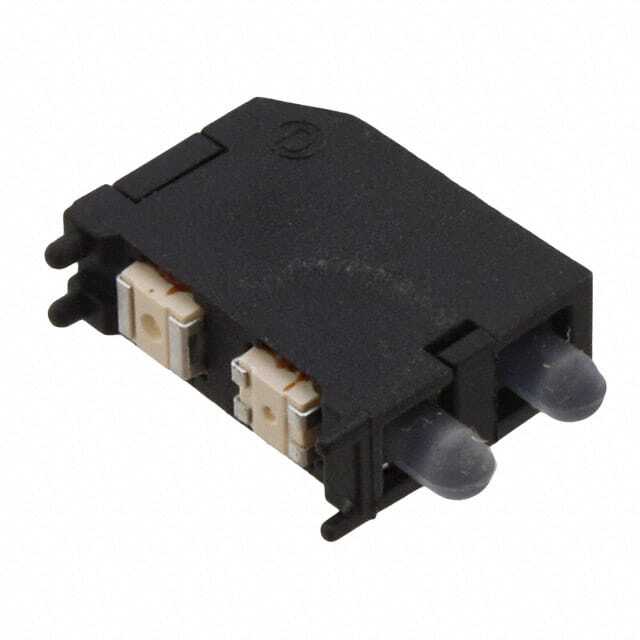

LED Bi-Level Bi-Color Blue/Green/Yellow 428nm/572nm/587nm 8-Pin SMD T/R

1600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Bi-Level Bi-Color
Product Category	Standard LED
Color
Number of LEDs	2
LED Body Material	InGaN
Lens Shape Type	Circular
Lens Dimensions (mm)	2.29x2.29x2.67
Mounting Orientation	Right Angle
Intensity	5mcd/14mcd
Dominant Wavelength (nm)	465
Peak Wavelength (nm)	428
Maximum Forward Current (mA)	20/15
Test Current (mA)	10
Maximum Forward Voltage (V)	4.1/2.2
Reverse Voltage (V)	5
Typical Forward Voltage (V)	3.5/2/2
Internal Protection	No
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-40
Operating Temperature-Max	100
Lead Standoff	No
Supplier Color	Blue
Special Color	Blue
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	SMD
Pin Count	8
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	11.56
Package Length	16.89
Package Width	4.57(Max)
