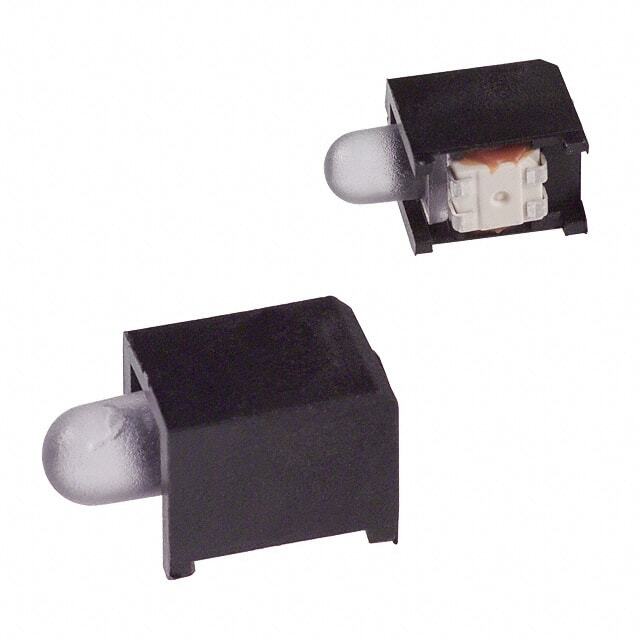

591-3001-013F

SKU: 44044

Manufacturer: Dialight

LED Bi-Color Green/Red 4-Pin T/R

2100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Bi-Color
Product Category	Chip LED
Color	Green/Red
Number of LEDs	2
Lens Shape Type	Circular
Lens Dimensions (mm)	2.8x2.8x2.7
Lens Appearance	Non Diffused
Mounting Orientation	Right Angle
Intensity	8mcd
Dominant Wavelength (nm)	570/628
Viewing Angle (°)	40
Maximum Forward Current (mA)	30
Test Current (mA)	20
Maximum Forward Voltage (V)	2.6
Reverse Voltage (V)	5(Min)
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-55
Operating Temperature-Max	100
Lead Standoff	No
Supplier Color	Green/Super Red
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Pin Count	4
Terminal Form	Surface Mount
Package Height	5
Package Length	8.8
Package Width	4.3
