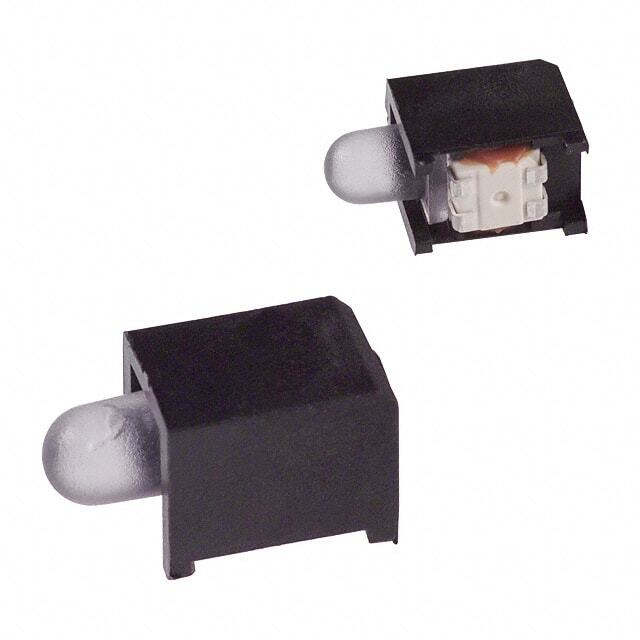

591-2601-013F

SKU: 135985

Manufacturer: Dialight

LED Low-Power Uni-Color Blue 428nm 3.5V 2-Pin T/R

2740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color
Number of LEDs	1
LED Body Material	InGaN
Lens Shape Type	Circular
Lens Dimensions (mm)	2.85x2.85x2.66
Mounting Orientation	Top Mount
Intensity	6mcd
Dominant Wavelength (nm)	465
Peak Wavelength (nm)	428
Viewing Angle (°)	40
Maximum Forward Current (mA)	20
Test Current (mA)	10
Maximum Forward Voltage (V)	4.3
Reverse Voltage (V)	5(Max)
Typical Forward Voltage (V)	3.5
Internal Protection	No
Maximum Power Dissipation (mW)	90
Operating Temperature-Min	-40
Operating Temperature-Max	100
Lead Standoff	No
Supplier Color	Blue
Special Color	Blue
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Pin Count	2
Terminal Form	Surface Mount
Package Height	5.03
Package Length	8.76
Package Width	4.32
