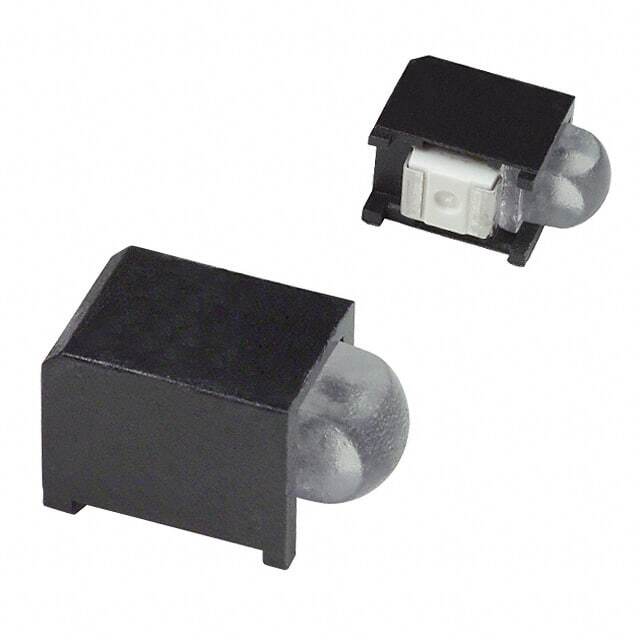

591-2301-107F

SKU: 86392

Manufacturer: Dialight

LED Uni-Color Green 2-Pin T/R

1670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	Green
Number of LEDs	1
Lens Shape Type	Square
Lens Dimensions (mm)	2.7x2.7x2.1
Mounting Orientation	Right Angle
Intensity	10.6mcd
Dominant Wavelength (nm)	570
Viewing Angle (°)	40
Maximum Forward Current (mA)	30
Test Current (mA)	10
Maximum Forward Voltage (V)	2.5
Reverse Voltage (V)	5(Min)
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-55
Operating Temperature-Max	100
Lead Standoff	No
Supplier Color	Green
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Pin Count	2
Terminal Form	Surface Mount
Package Height	5.03
Package Length	8.18
Package Width	4.32
