553-0711-300F

SKU: 121825

Manufacturer: Dialight

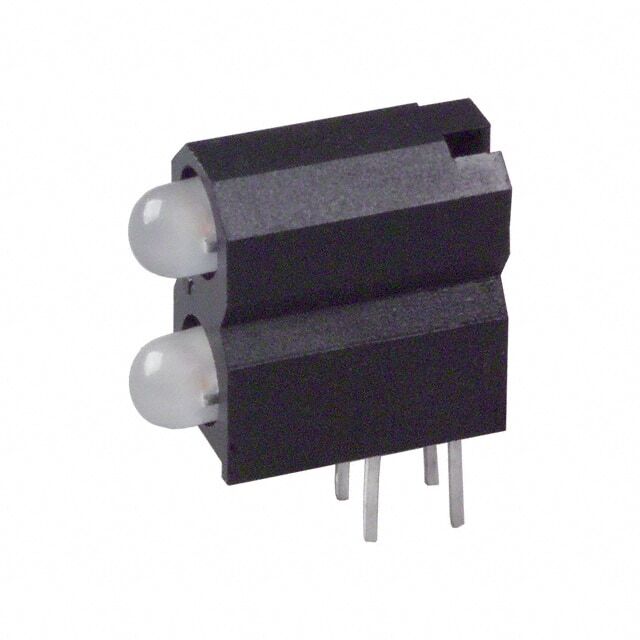

LED Low-Power Bi-Level Bi-Color Green/Red 565nm/635nm 2.1V 4-Pin Bulk

3280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Bi-Level Bi-Color
Product Category	Standard LED
Color
Number of LEDs	2
Lens Shape Type	Circular
Lens Dimensions (mm)	2.9x2.9x2.54
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Right Angle
Intensity	10mcd
Peak Wavelength (nm)	565/635
Viewing Angle (°)	50
Maximum Forward Current (mA)	45
Test Current (mA)	10
Maximum Forward Voltage (V)	2.8
Typical Forward Voltage (V)	2.1
Internal Protection	No
Maximum Power Dissipation (mW)	140
Operating Temperature-Min	-55
Operating Temperature-Max	100
Lead Standoff	No
Supplier Color	Green/Red
Special Color	Green/Red
High Power	No
High Brightness	No
Packing Method	Bulk
Pin Count	4
Terminal Form	Through Hole
Package Height	9.65
Package Length	4.32
Package Width	10.54
