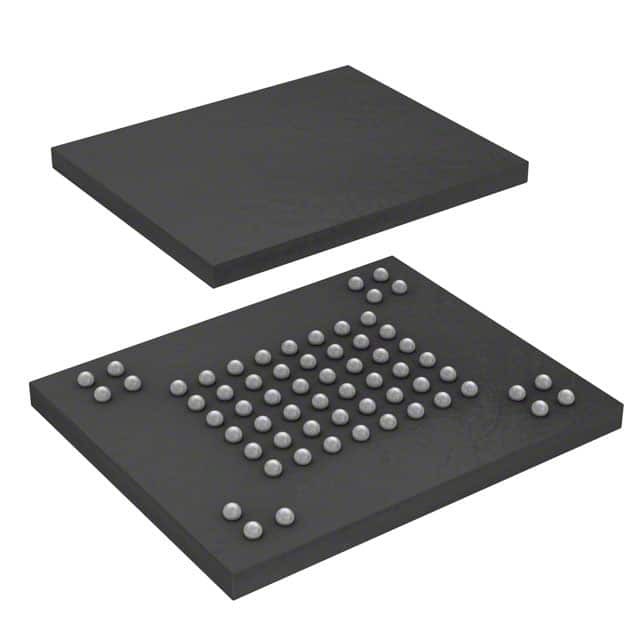

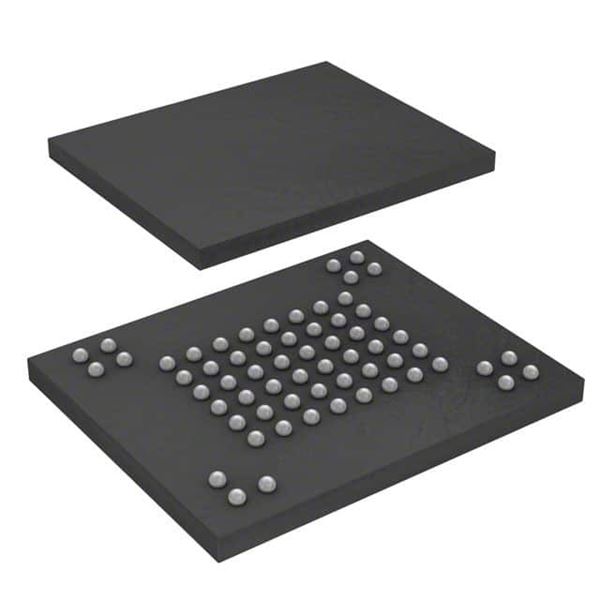

S34MS04G200BHI000

SKU: 28359

Manufacturer: Cypress - An Infineon Technologies Company

SLC NAND Flash Parallel 1.8V 4G-bit 512M x 8 63-Pin BGA Tray

3090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.1.a
Part Status	Active
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	SLC NAND
Chip Density (bit)	4G
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	30
Sector Size	128Kbyte x 4096
Page Size	2Kbyte
Number of Bits/Word (bit)	8
Number of Words	512M
Programmability	Yes
Timing Type	Asynchronous
Maximum Erase Time (s)	0.0035(Typ)/Block
Maximum Page Access Time (ns)	45(Min)
Maximum Programming Time (ms)	0.7
Interface Type	Parallel
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.95
Operating Current (mA)	30
Program Current (mA)	30
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Command Compatible	No
ECC Support	Yes
Support of Page Mode	Yes
Minimum Endurance (Cycles)	100000(Typ)
Packing Method	Tray
Original Package	BGA
Pin Count	63
Terminal Form	Surface Mount
Package Height	1(Max) - 0.25(Min)
Package Length	11
Package Width	9
