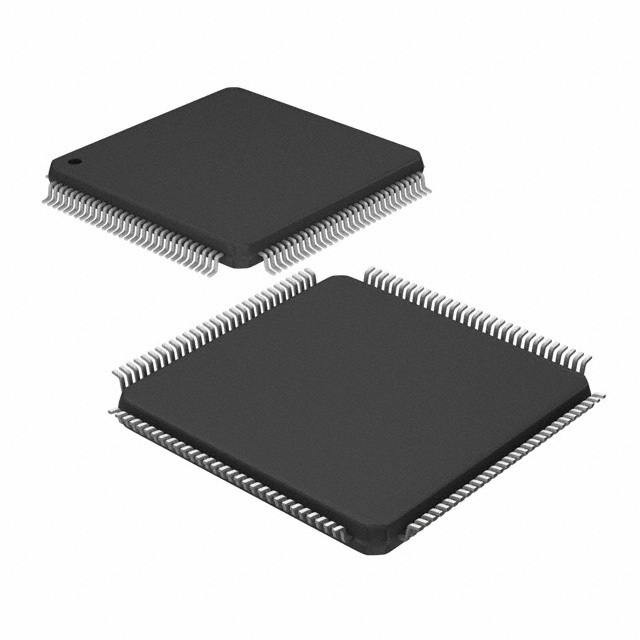

MB9BF566RPMC-G-JNE2

SKU: 55966

Manufacturer: Cypress - An Infineon Technologies Company

MCU 32-bit ARM Cortex M4F RISC 544KB Flash 3.3V/5V 120-Pin LQFP Tray

2710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.3
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	FM4
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4F
Core Architecture	ARM
Maximum CPU Frequency (MHz)	160
Maximum Clock Rate (MHz)	160
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	512KB
RAM Size	64KB
Programmability	Yes
Interface Type	CAN/I2C/UART/USB
Number of I/Os	100
No. of Timers	4
PWM	1
Number of ADCs	Triple
ADC Channels	24/24/24
ADC Resolution (bit)	12/12/12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	0
UART	8
USB	1
SPI	0
I2C	8
I2S	0
CAN	2
Ethernet	0
Watchdog	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tray
Original Package	LQFP
Pin Count	120
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	16
Package Width	16
PCB changed	120
