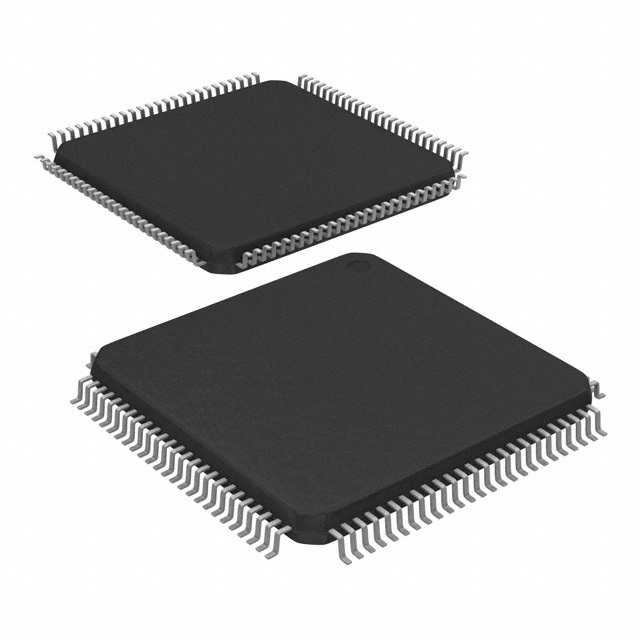

MB9BF504NBPMC-G-JNE2

SKU: 55968

Manufacturer: Cypress - An Infineon Technologies Company

MCU 32-bit ARM Cortex M3 RISC 256KB Flash 3.3V/5V 100-Pin LQFP Tray

2820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	FM3
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	80
Maximum Clock Rate (MHz)	80
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	32KB
Programmability	Yes
Interface Type	CAN/I2C/UART
Number of I/Os	80
No. of Timers	2
Number of ADCs	Triple
ADC Channels	16/16/16
ADC Resolution (bit)	12/12/12
USART	0
UART	1
USB	0
SPI	0
I2C	1
I2S	0
CAN	2
Ethernet	0
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	LQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	14
Package Width	14
PCB changed	100
