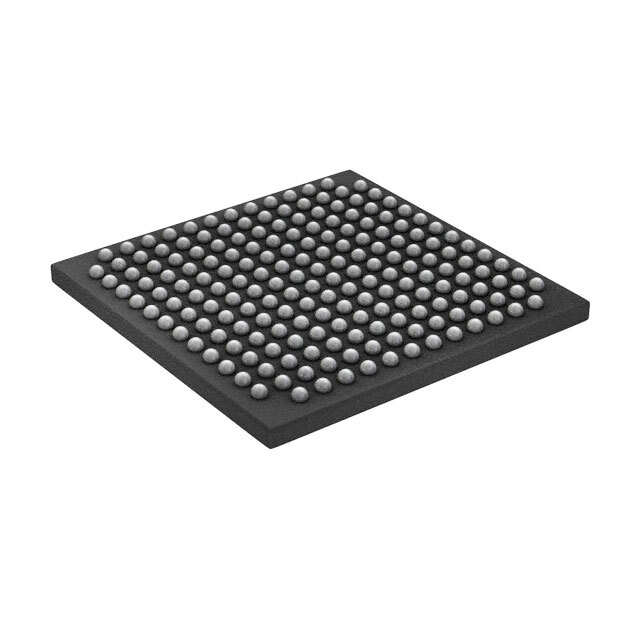

MB9BF318TBGL-GE1

SKU: 34555

Manufacturer: Cypress - An Infineon Technologies Company

MCU 32-bit ARM Cortex M3 RISC 1MB Flash 3.3V/5V 192-Pin FBGA Tray

2940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a
Part Status	Active
Automotive	No
PPAP	No
Family Name	FM3
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	144
Maximum Clock Rate (MHz)	144
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	1MB
RAM Size	128KB
Programmability	Yes
Interface Type	I2C/UART/USB
Number of I/Os	154
No. of Timers	1
PWM	1
Number of ADCs	Single
ADC Channels	32/32/32
ADC Resolution (bit)	12/12/12
USART	0
UART	1
USB	1
SPI	0
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	FBGA
Pin Count	192
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.9
Package Length	12
Package Width	12
PCB changed	192
