MB9AFA31MPMC-G-SNE2

SKU: 70001

Manufacturer: Cypress - An Infineon Technologies Company

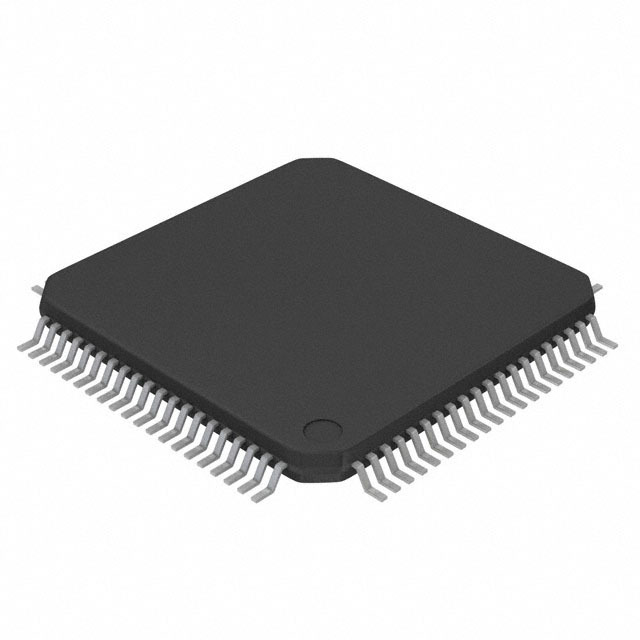

MCU 32-bit ARM Cortex M3 RISC 64KB Flash 3.3V/5V 80-Pin LQFP Tray

1720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	FM3
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	20
Maximum Clock Rate (MHz)	20
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	12KB
Programmability	Yes
Interface Type	I2C/UART
Number of I/Os	67
No. of Timers	2
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	10
LCD Segments	148
USART	0
UART	1
USB	0
SPI	0
I2C	1
I2S	0
CAN	0
Ethernet	0
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	400
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	LQFP
Pin Count	80
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	12
Package Width	12
PCB changed	80
