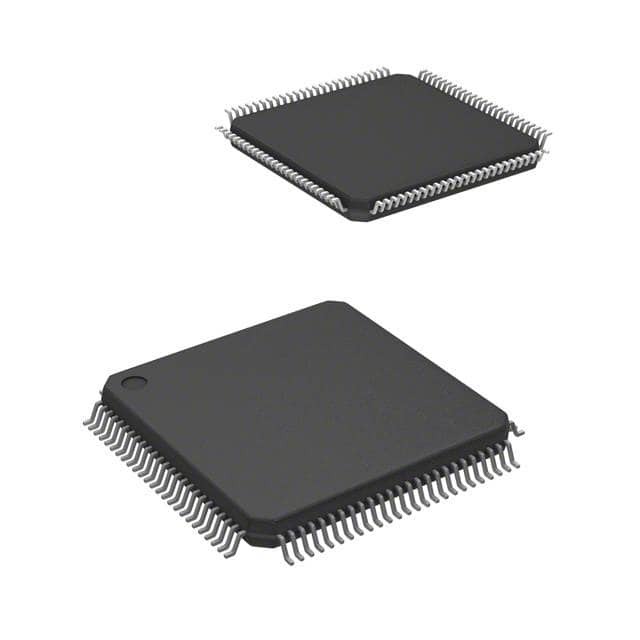

MB96F696RBPMC-GSE2

SKU: 140727

Manufacturer: Cypress - An Infineon Technologies Company

MCU 16-bit F2MC-16FX RISC 288.5KB Flash 3.3V/5V Automotive 100-Pin LQFP Tray

2490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	Unknown
PPAP	Unknown
Family Name	F2MC
Instruction Set Architecture	RISC
Device Core	F2MC-16FX
Core Architecture	F2MC
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	288KB
RAM Size	16KB
Programmability	Yes
Interface Type	CAN/I2C/USART
Number of I/Os	79
No. of Timers	5
PWM	8
Number of ADCs	Single
ADC Channels	27
ADC Resolution (bit)	10
LCD Segments	144
USART	5
UART	0
USB	0
SPI	0
I2C	1
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Special Features	CAN Controller,LCD Controller
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	14
Package Width	14
PCB changed	100
