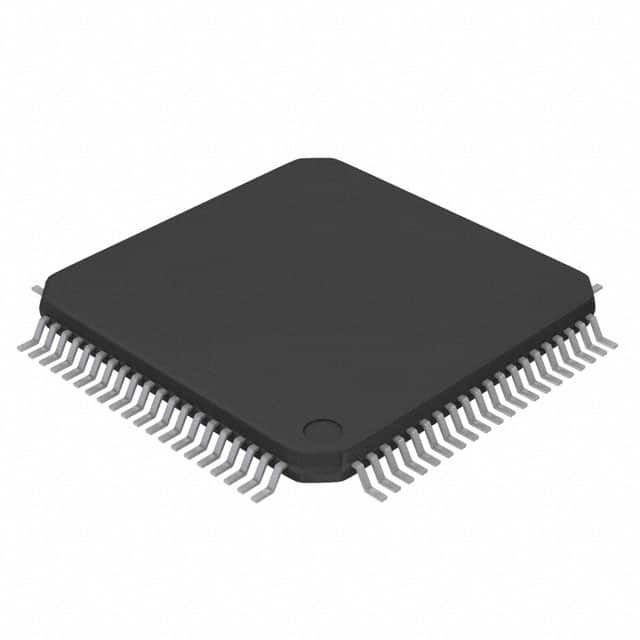

MB96F636RBPMC-GS-N2E1

SKU: 158148

Manufacturer: Cypress - An Infineon Technologies Company

MCU 16-bit F2MC-16FX RISC 288.5KB Flash 3.3V/5V Tray

3400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	F2MC
Instruction Set Architecture	RISC
Device Core	F2MC-16FX
Core Architecture	F2MC
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	288.5KB
RAM Size	24KB
Programmability	Yes
Interface Type	CAN/I2C/USART
Number of I/Os	64
No. of Timers	4
PWM	1
Number of ADCs	Single
ADC Channels	21
ADC Resolution (bit)	10
USART	5
UART	0
USB	0
SPI	0
I2C	2
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	Yes
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
