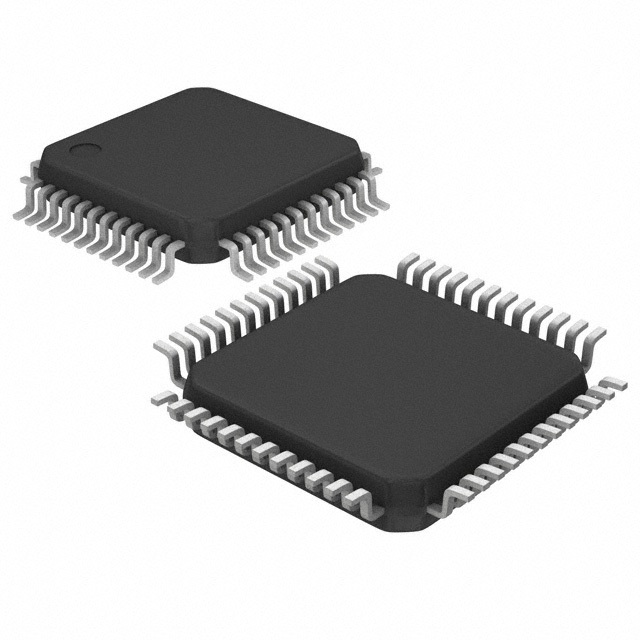

MB96F613ABPMC-GSE1

SKU: 27473

Manufacturer: Cypress - An Infineon Technologies Company

MCU 16-bit F2MC-16FX RISC 96.5KB Flash 3.3V/5V Automotive 48-Pin LQFP Tray

2470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Unknown
PPAP	Unknown
Family Name	MB96610
Instruction Set Architecture	RISC
Device Core	F2MC-16FX
Core Architecture	F2MC
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	96.5KB
RAM Size	10KB
Programmability	Yes
Interface Type	USART
Number of I/Os	37
No. of Timers	5
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	10
USART	3
UART	0
USB	0
SPI	0
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Original Package	LQFP
Pin Count	48
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	7
Package Width	7
PCB changed	48
