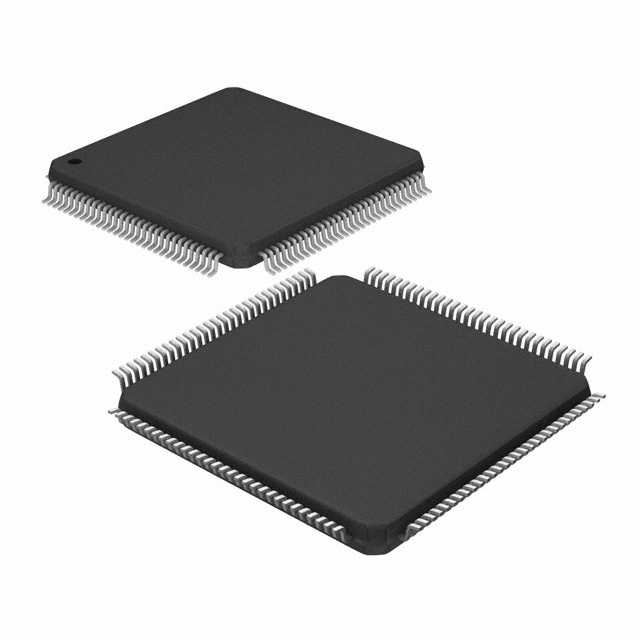

MB96F387RSBPMC-GSE2

SKU: 87262

Manufacturer: Cypress - An Infineon Technologies Company

MCU 16-bit F2MC-16FX CISC 416KB Flash 3.3V/5V 120-Pin LQFP Tray

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.3
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	F2MC
Instruction Set Architecture	CISC
Device Core	F2MC-16FX
Maximum CPU Frequency (MHz)	56
Maximum Clock Rate (MHz)	56
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	416KB
RAM Size	16KB
Programmability	Yes
Interface Type	CAN/I2C/USART
Number of I/Os	96
No. of Timers	3
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	10
USART	5
UART	0
USB	0
SPI	0
I2C	1
I2S	0
CAN	2
Ethernet	0
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	800
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LQFP
Pin Count	120
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	16
Package Width	16
PCB changed	120
