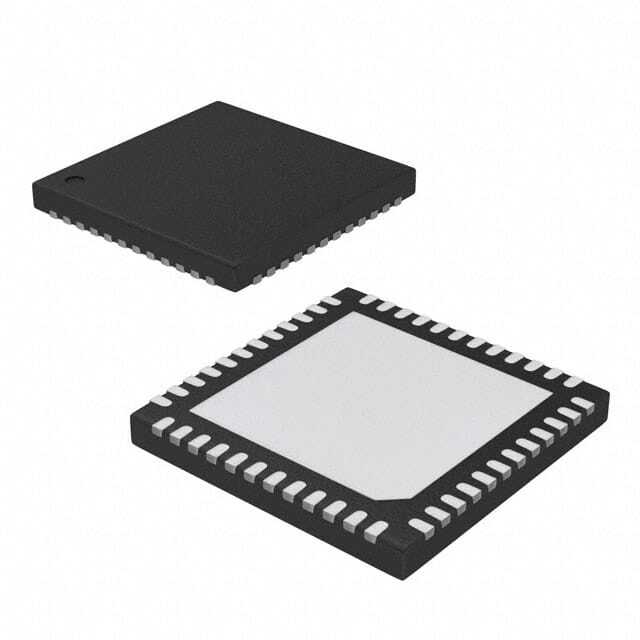

MB95F698KWQN-G-SNE1

SKU: 98172

Manufacturer: Cypress - An Infineon Technologies Company

MCU 8-bit F2MC-8FX CISC 60KB Flash 3.3V/5V 48-Pin QFN EP Tray

1700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	MB95690
Instruction Set Architecture	CISC
Device Core	F2MC-8FX
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	60KB
RAM Size	2KB
Programmability	Yes
Interface Type	I2C/SIO/UART
Number of I/Os	45
No. of Timers	8
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	10
USART	0
UART	2
USB	0
SPI	0
I2C	1
I2S	0
CAN	0
Ethernet	0
Analog Comparators	2
Operating Supply Voltage-Min (V)	2.88
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	QFN EP
Pin Count	48
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	7
Package Width	7
PCB changed	48
