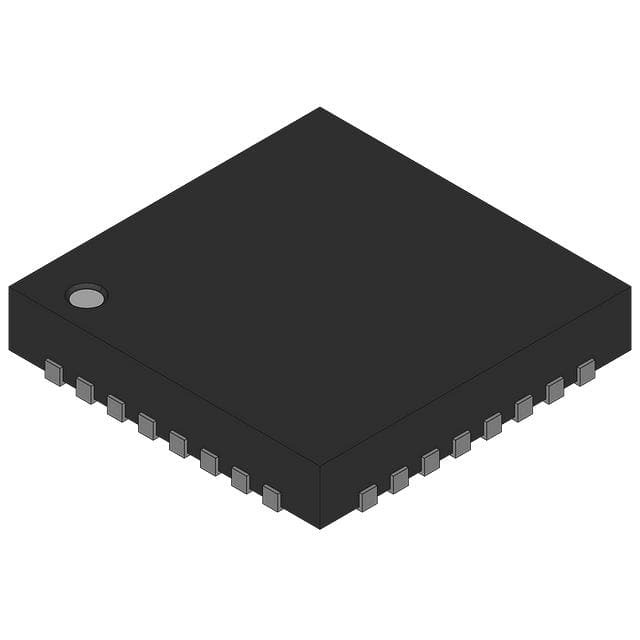

MB95F564KWQN-G-SNE1

SKU: 112366

Manufacturer: Cypress - An Infineon Technologies Company

MCU 8-bit F2MC-8FX CISC 20KB Flash 3.3V/5V 32-Pin QFN EP Tray

4390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	Obsolete
HTS	8542.32.00.51
Automotive	No
PPAP	No
Family Name	8FX
Instruction Set Architecture	CISC
Device Core	F2MC-8FX
Core Architecture	F2MC
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	20KB
RAM Size	496B
Programmability	Yes
Interface Type	UART
Number of I/Os	17
No. of Timers	1
PWM	1
Number of ADCs	Single
ADC Channels	6
ADC Resolution (bit)	10
USART	0
UART	1
USB	0
SPI	0
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	2.4
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	QFN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	5
PCB changed	32
