FM25V02A-DGQ

SKU: 54406

Manufacturer: Cypress - An Infineon Technologies Company

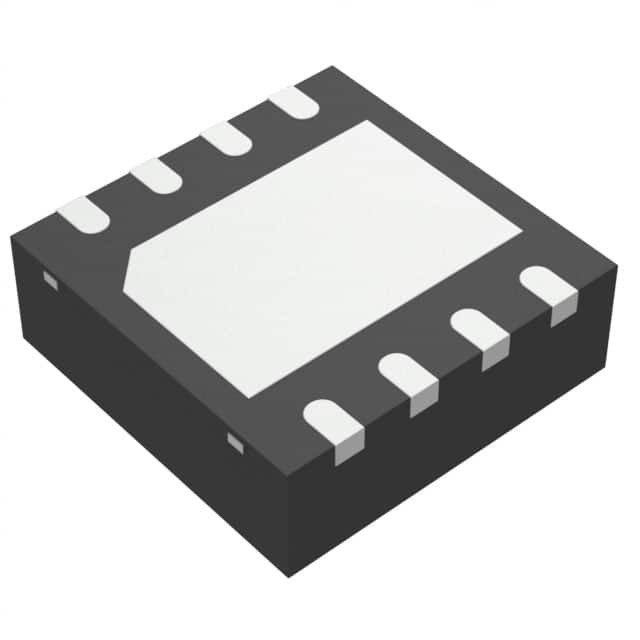

FRAM 256Kbit Serial-SPI Interface 3.3V 8-Pin DFN EP Tube

3600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.71
Automotive	No
PPAP	No
Chip Density (bit)	256K
Density Range (bit)	256K to 8M
Organization	32Kx8
Data Bus Width (bit)	8
Max. Access Time (ns)	11
Interface Type	Serial-SPI
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	DFN EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.7
Package Length	4.5
Package Width	4
