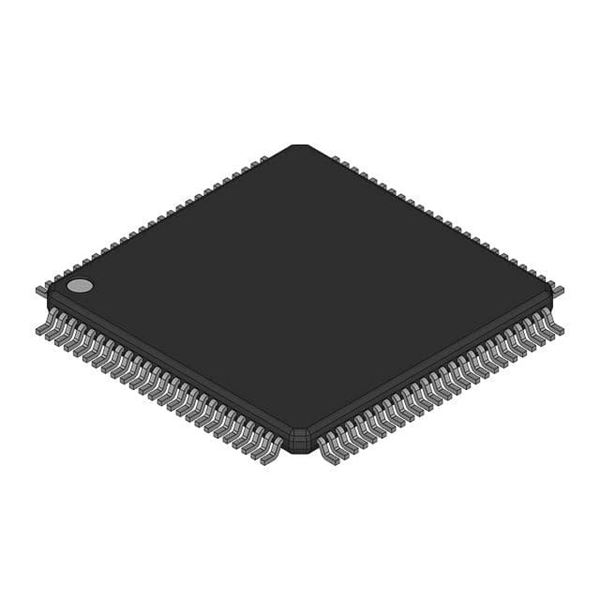

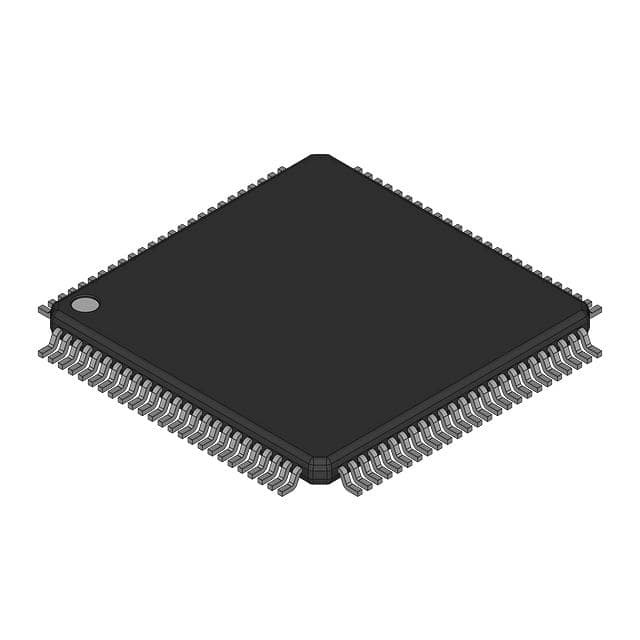

CY8C5666AXI-LP004

SKU: 68026

Manufacturer: Cypress - An Infineon Technologies Company

MCU 32-bit ARM Cortex M3 RISC 64KB Flash 1.8V/3.3V/5V 100-Pin TQFP Tray

3370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.3
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	CY8Cxxx
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	67
Maximum Clock Rate (MHz)	67
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	16KB
Maximum Expanded Memory Size	4GB
Programmability	Yes
Interface Type	I2C/SPI/UART/USB
Number of I/Os	60
No. of Timers	4
Timers Resolution (bit)	16/16/16/16
PWM	4
Number of ADCs	Dual
ADC Channels	2
ADC Resolution (bit)	12/12
Number of DACs	Quad
DAC Channels	4
DAC Resolution (bit)	8/8/8/8
USART	0
UART	1
USB	1
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	Yes
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.89
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Pin Count	100
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	14
Package Width	14
PCB changed	100
