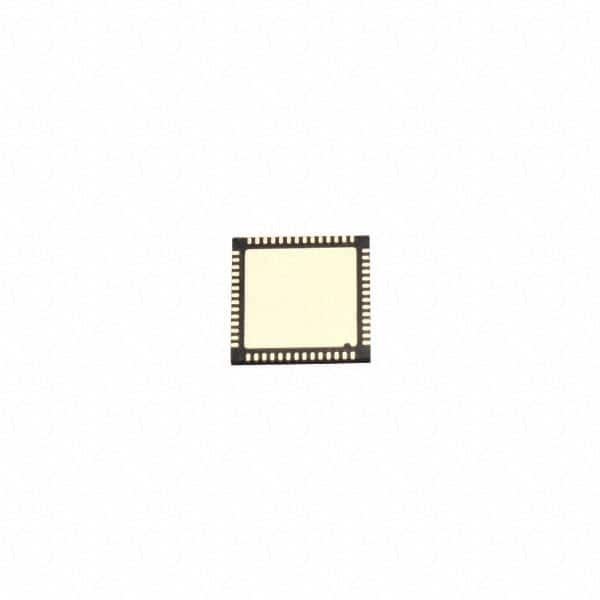

CY8C4247LQI-BL483

SKU: 138806

Manufacturer: Cypress - An Infineon Technologies Company

MCU 32-bit ARM Cortex M0 RISC 128KB Flash 2.5V/3.3V/5V 56-Pin QFN EP Tray

43230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	CY8Cxxx
Instruction Set Architecture	RISC
Device Core	ARM Cortex M0
Core Architecture	ARM
Maximum CPU Frequency (MHz)	48
Maximum Clock Rate (MHz)	48
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	16KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	36
No. of Timers	4
PWM	4
Number of ADCs	Single
ADC Resolution (bit)	12
Number of DACs	Single
USART	0
UART	2
USB	0
SPI	2
I2C	2
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	Yes
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	QFN EP
Pin Count	56
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	7
Package Width	7
PCB changed	56
