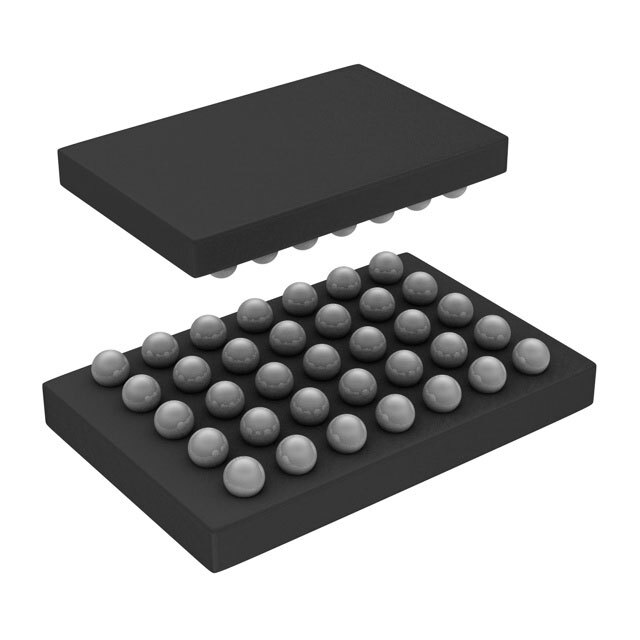

CY8C4146FNI-S443T

SKU: 32601

Manufacturer: Cypress - An Infineon Technologies Company

MCU 32-bit ARM Cortex M0+ RISC 64KB Flash 2.5V/3.3V/5V 35-Pin WLCSP Reel

1950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.3
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	CY8Cxxx
Instruction Set Architecture	RISC
Device Core	ARM Cortex M0+
Core Architecture	ARM
Maximum CPU Frequency (MHz)	48
Maximum Clock Rate (MHz)	48
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	8KB
Interface Type	I2C/SPI/UART
Number of I/Os	31
No. of Timers	5
Timers Resolution (bit)	16/16/16/16/16
PWM	5
Number of ADCs	Dual
ADC Resolution (bit)	10/12
Number of DACs	Dual
LCD Segments	50
USART	0
UART	2
USB	0
SPI	2
I2C	2
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Reel
Original Package	WLCSP
Pin Count	35
Terminal Form	Surface Mount
Package Height	0.31(Max)
Package Length	2.58
Package Width	2.1
