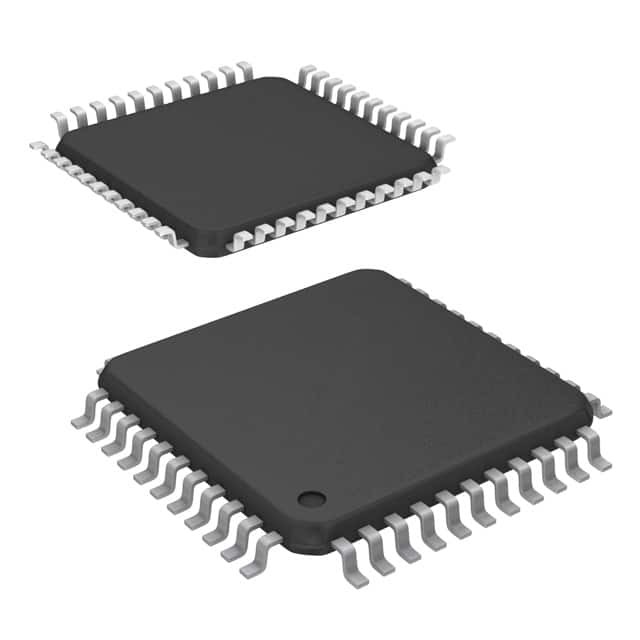

CY8C4125AXI-S423

SKU: 122227

Manufacturer: Cypress - An Infineon Technologies Company

MCU 32-bit ARM Cortex M0+ RISC 32KB Flash 2.5V/3.3V/5V 44-Pin TQFP Tray

3680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.3
Part Status	Active
Automotive	No
PPAP	No
Family Name	CY8Cxxx
Instruction Set Architecture	RISC
Device Core	ARM Cortex M0+
Core Architecture	ARM
Maximum CPU Frequency (MHz)	24
Maximum Clock Rate (MHz)	24
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	4KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	36
No. of Timers	5
Timers Resolution (bit)	16/16/16/16/16
PWM	5
Number of ADCs	Dual
ADC Channels	16
ADC Resolution (bit)	10/12
Number of DACs	Single
DAC Channels	2
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	TQFP
Pin Count	44
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	10
Package Width	10
PCB changed	44
