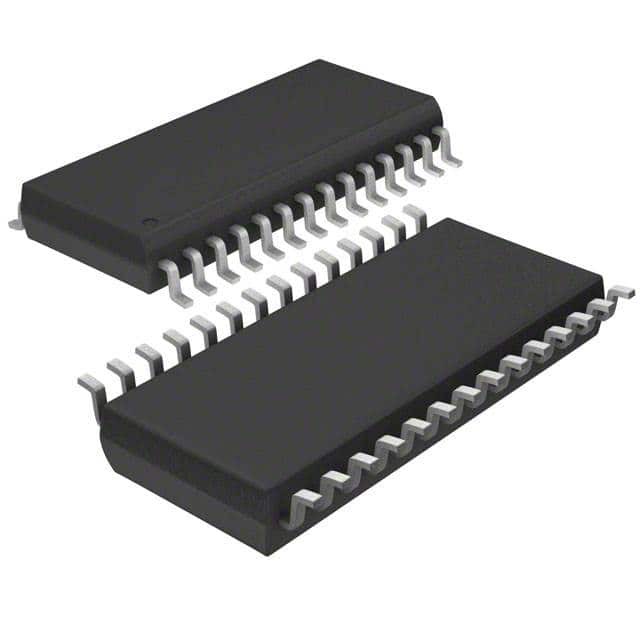

CY8C29466-12PVXE

SKU: 145809

Manufacturer: Cypress - An Infineon Technologies Company

MCU 8-bit M8C 32KB Flash 5V Automotive 28-Pin SSOP Tube

1290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	CY8Cxxx
Device Core	M8C
Core Architecture	M8C
Maximum CPU Frequency (MHz)	12
Maximum Clock Rate (MHz)	12
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	2KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	24
PWM	1
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	14
Number of DACs	Single
DAC Channels	4
DAC Resolution (bit)	9
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	4
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Pin Count	28
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	1.85(Max)
Package Length	10.4(Max)
Package Width	5.6(Max)
PCB changed	28
