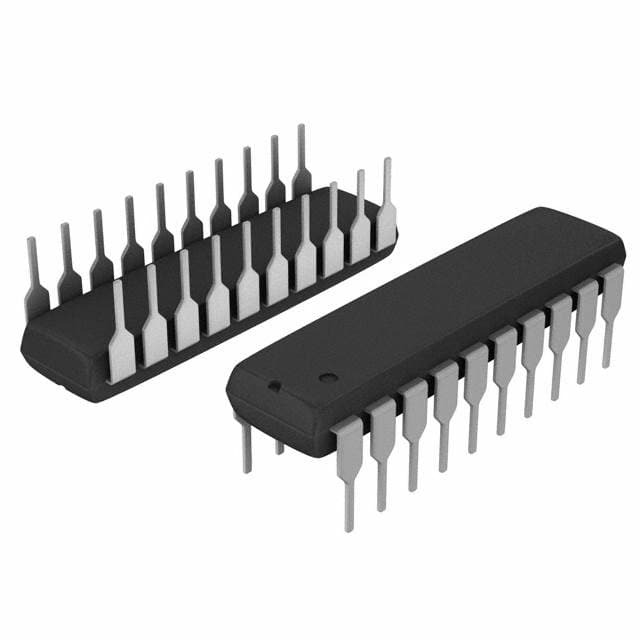

CY8C24223A-24PXI

SKU: 124542

Manufacturer: Cypress - An Infineon Technologies Company

MCU 8-bit M8C 4KB Flash 2.5V/3.3V/5V 20-Pin PDIP Tube

1260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	CY8Cxxx
Device Core	M8C
Core Architecture	M8C
Maximum CPU Frequency (MHz)	24
Maximum Clock Rate (MHz)	24
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	4KB
RAM Size	256B
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	16
PWM	1
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	14
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	9
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Operating Supply Voltage-Min (V)	2.4
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	20
Standard Package Method	DIP
Original Package	PDIP
Terminal Form	Through Hole
Package Height	3.56(Max)
Package Length	26.42(Max)
Package Width	6.86(Max)
PCB changed	20
