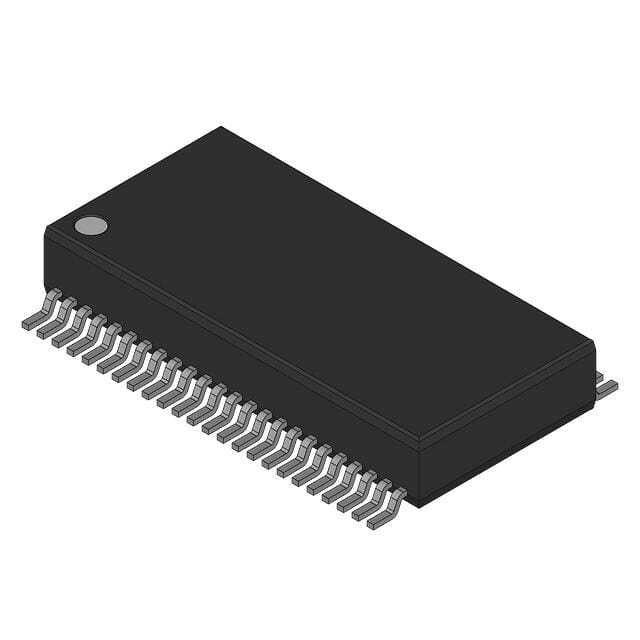

CY8C22645-12PVXE

SKU: 16126

Manufacturer: Cypress - An Infineon Technologies Company

MCU 8-bit M8C CISC 16KB Flash 5V Automotive 48-Pin SSOP Tube

3170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	CY8Cxxx
Instruction Set Architecture	CISC
Device Core	M8C
Core Architecture	M8C
Maximum CPU Frequency (MHz)	24
Maximum Clock Rate (MHz)	24
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	16KB
RAM Size	1KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	38
No. of Timers	2
Number of ADCs	Single
ADC Resolution (bit)	10
Number of DACs	Single
USART	0
UART	4
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	4
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tube
Pin Count	48
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2.34(Max)
Package Length	16(Max)
Package Width	7.59(Max)
PCB changed	48
