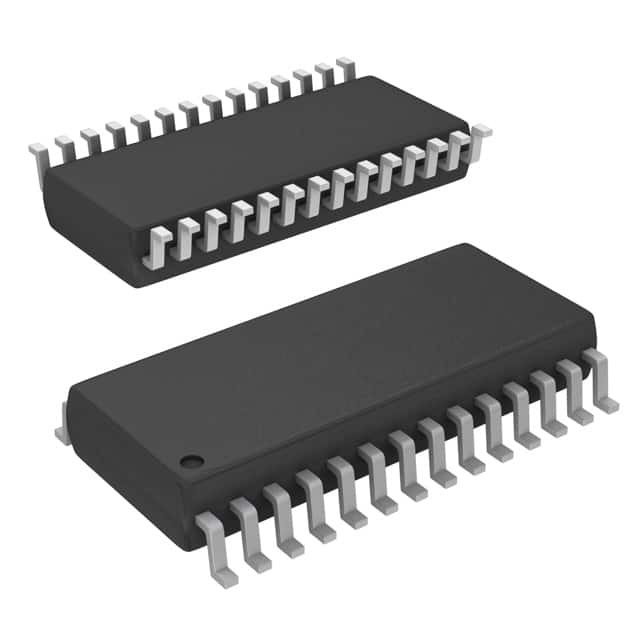

CY8C21345-24SXIT

SKU: 46842

Manufacturer: Cypress - An Infineon Technologies Company

MCU 8-bit M8C CISC 8KB Flash 3.3V/5V 28-Pin SOIC T/R

4260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Family Name	CY8Cxxx
Instruction Set Architecture	CISC
Device Core	M8C
Core Architecture	M8C
Maximum CPU Frequency (MHz)	24
Maximum Clock Rate (MHz)	24
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	8KB
RAM Size	512B
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	24
No. of Timers	2
PWM	1
Number of ADCs	Single
ADC Channels	3
ADC Resolution (bit)	10
Number of DACs	Dual
USART	0
UART	2
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	4
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	28
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.37(Max)
Package Length	18.11(Max)
Package Width	7.62(Max)
PCB changed	28
