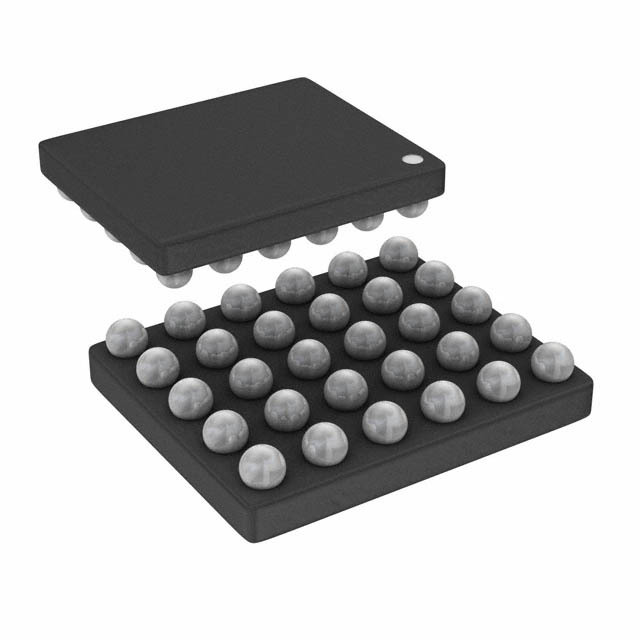

CY8C20767-24FDXCT

SKU: 11293

Manufacturer: Cypress - An Infineon Technologies Company

MCU 8-bit M8C 32KB Flash 3.3V/5V 30-Pin WLCSP T/R

2250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	CY8Cxxx
Device Core	M8C
Core Architecture	M8C
Maximum CPU Frequency (MHz)	24
Maximum Clock Rate (MHz)	24
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	2KB
Programmability	Yes
Interface Type	I2C/SPI
Number of I/Os	27
No. of Timers	3
Timers Resolution (bit)	16/16/16
Number of ADCs	Single
ADC Resolution (bit)	10
USART	0
UART	0
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	WLCSP
Pin Count	30
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.3
Package Length	2.31
Package Width	1.85
PCB changed	30
