CY7C63823-SXC

SKU: 11284

Manufacturer: Cypress - An Infineon Technologies Company

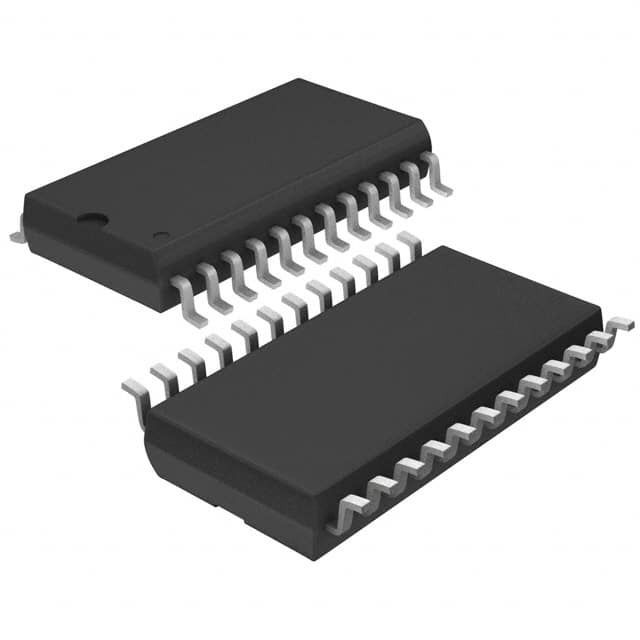

Low Speed/Full Speed USB Peripheral Controller USB 1.1/USB 2.0 5V Tube 24-Pin SOIC

13770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.3.
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Type	USB Peripheral Controller
USB Transceiver	Yes
USB Speed Type	Low Speed
Maximum Data Rate (Mbps)	1.5225
Maximum Operating Frequency (MHz)	24
Protocols Supported	USB 1.1/USB 2.0
Interface Type	Serial
Operating Supply Voltage-Min (V)	4.75
Operating Supply Voltage-Max (V)	5.5
Typical Operating Supply Voltage (V)	5
Typical Supply Current (mA)	10
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tube
Standard Package Method	SOP
Pin Count	24
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	2.37(Max)
Package Length	15.62(Max)
Package Width	7.62(Max)
PCB changed	24
