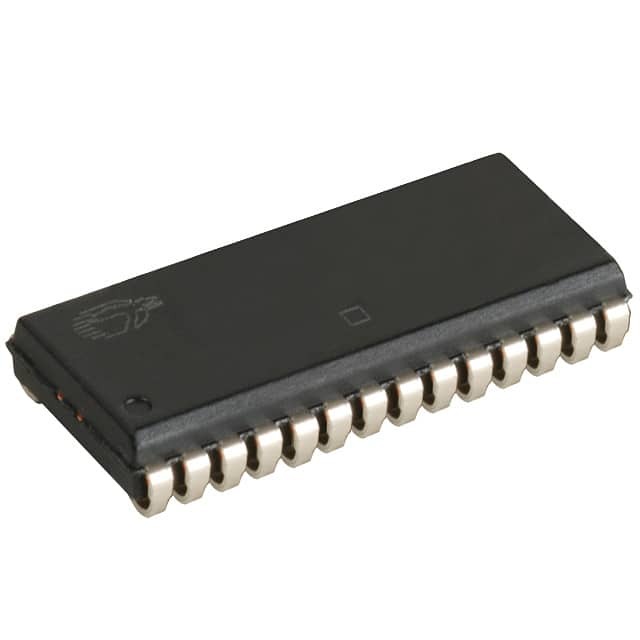

CY7C419-15VXCT

SKU: 150578

Manufacturer: Cypress - An Infineon Technologies Company

FIFO Mem Async Dual Depth/Width Uni-Dir 256 x 9 28-Pin SOJ T/R

2090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Chip Density (bit)	2.25K
Organization	256x9
Configuration	Dual
Data Bus Width (bit)	9
Bus Directional	Uni-Directional
Timing Type	Asynchronous
Max. Access Time (ns)	15
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Current (mA)	65
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Expansion Support	Yes
Expansion Type	Depth
FWFT Support	No
Retransmit Capability	Yes
Packing Method	Tape and Reel
Programmability	Yes
Pin Count	28
Standard Package Method	SOJ
Original Package	SOJ
Terminal Form	Surface Mount
Package Height	2.41(Min)
Package Length	18.11(Max)
Package Width	7.62(Max)
PCB changed	28
