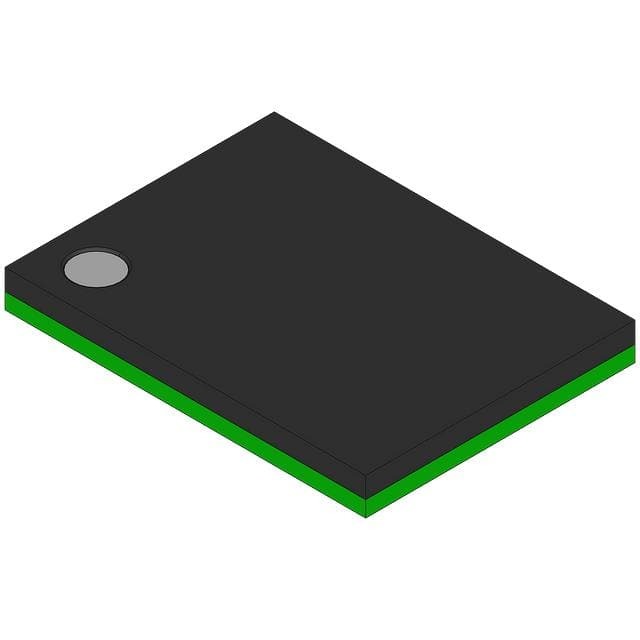

CY37032VP48-143BAC

SKU: 74953

Manufacturer: Cypress - An Infineon Technologies Company

CPLD Ultra37000 Family 960 Gates 32 Macro Cells 143MHz 5V 48-Pin BGA

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	Ultra37000
Program Memory Type	ROMless
Number of Logic Blocks/Elements	2
Number of Global Clocks	4
Number of Macro Cells	32
Product Terms	16
Device System Gates	960
Data Gate	No
Maximum Number of User I/Os	37
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Maximum Internal Frequency (MHz)	143
Maximum Clock to Output Delay (ns)	6
Maximum Propagation Delay Time (ns)	8.5
Speed Grade	143
Individual Output Enable Control	No
Operating Supply Voltage-Min (V)	4.75
Operating Supply Voltage-Max (V)	5.25
Typical Operating Supply Voltage (V)	5
I/O Voltage (V)	3.3
Tolerant Configuration Interface Voltage (V)	5
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Tradename	Ultra37000
Original Package	BGA
Pin Count	48
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.94(Max)
Package Length	7
Package Width	7
PCB changed	48
