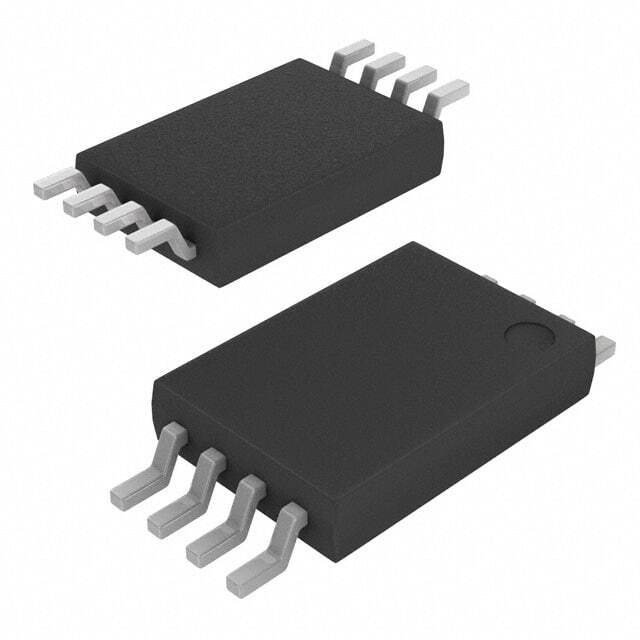

CY2304NZZXI-1T

SKU: 60964

Manufacturer: Cypress - An Infineon Technologies Company

Clock Fanout Buffer 4-OUT 1-IN 1:4 8-Pin TSSOP T/R

10610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Fanout Buffer
Number of Outputs per Chip	4
Maximum Input Frequency (MHz)	140
Maximum Propagation Delay Time @ Maximum CL (ns)	5@3V to 3.6V
Absolute Propagation Delay Time (ns)	5
Maximum Duty Cycle	60%
Input Logic Level	LVTTL
Output Logic Level	LVCMOS
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Quiescent Current (mA)	25
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	4.5(Max)
PCB changed	8
