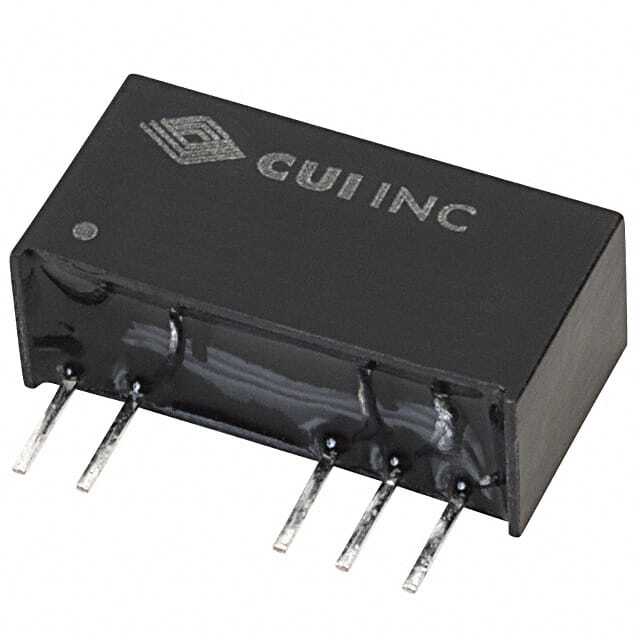

PEM2-S15-D15-S CUI Inc

PEM2-S15-D15-S

SKU: 13863

Manufacturer: CUI Inc

Module DC-DC 15VIN 2-OUT 15V/-15V 0.067A/-0.067A 2W 5-Pin SIP

Request Free Samples

1230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	2
Isolation	Isolated
Minimum Input Voltage (V)	13.5
Typical Input Voltage (V)	15
Maximum Input Voltage (V)	16.5
Output Voltage (V)	-15
Output Current (A)	-0.067
Output Power (W)	2
Minimum Isolation Voltage	3000VDC
Switching Frequency (kHz)	100(Typ)
Switching Regulator	Yes
Load Regulation	7%(Typ)
Line Regulation	1.2%
Efficiency (%)	84(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Extended
Output Type	Fixed
Original Package	SIP
Pin Count	5
Standard Package Method	SIP
Terminal Form	Through Hole
Package Height	10
Package Length	19.6
Package Width	7
PCB changed	5
