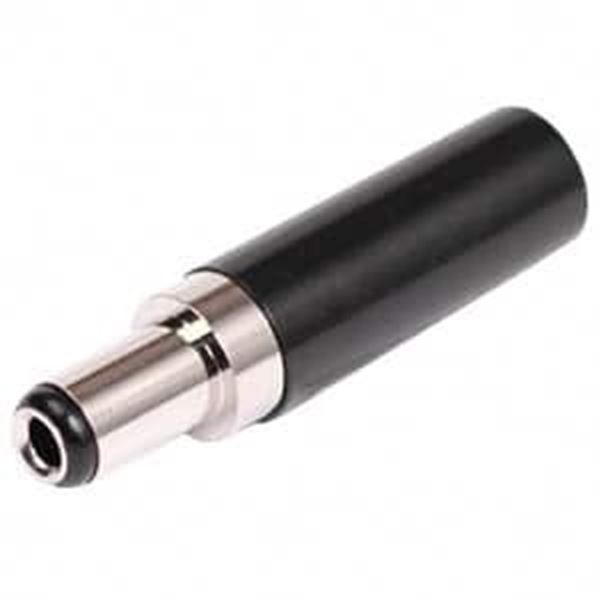

PP3-002A

SKU: 94429

Manufacturer: CUI Devices

2.1 x 5.5 mm, Round Cover, Modular, Dc Power Plug Connector

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.20
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	DC Power
Gender	PL
Number of Contacts	2
Number of Terminals	1
Number of Ports	1
Body Orientation	Straight
Current Rating-Max(A)	6
Voltage Rating-Max	20VDC
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-25
Operating Temperature-Max	70
Mating Cycle (Cycles)	5000
Housing Color	Black
Product Diameter (mm)	8.2
Length (mm)	34
Terminal Form	Cable Mount
Contact Plating	Nickel
