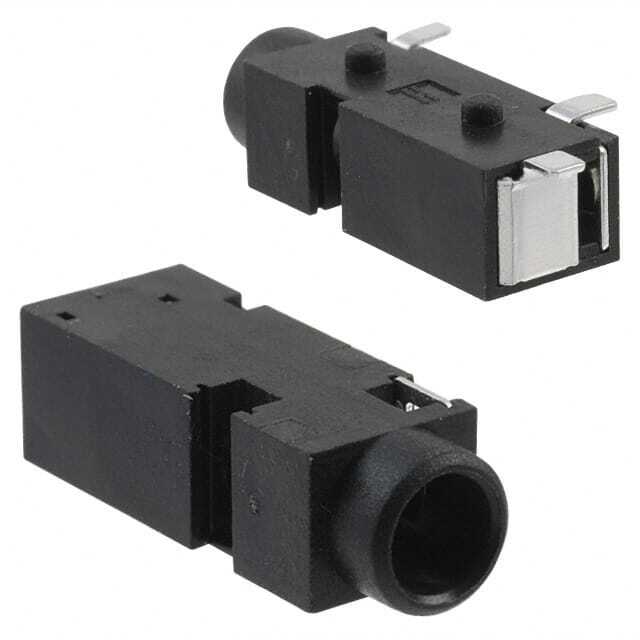

MJ-3523-SMT-TR

SKU: 49049

Manufacturer: CUI Devices

3.5 mm, Mono, Right Angle, Surface Mount (SMT), Audio Jack Connector

1240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	3.5MM Mono Jack
Gender	RCP
Number of Contacts	2
Number of Terminals	3
Number of Ports	1
Termination Method	Solder
Body Orientation	Right Angle
Current Rating-Max(A)	1
Voltage Rating-Max	12VDC
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	50
Operating Temperature-Min	-25
Operating Temperature-Max	85
Mating Cycle (Cycles)	5000
Housing Color	Black
Length (mm)	10
Depth (mm)	19
Height (mm)	5
Terminal Form	Surface Mount
Housing Body Material	Polyamide 10T
Contact Plating	Silver
