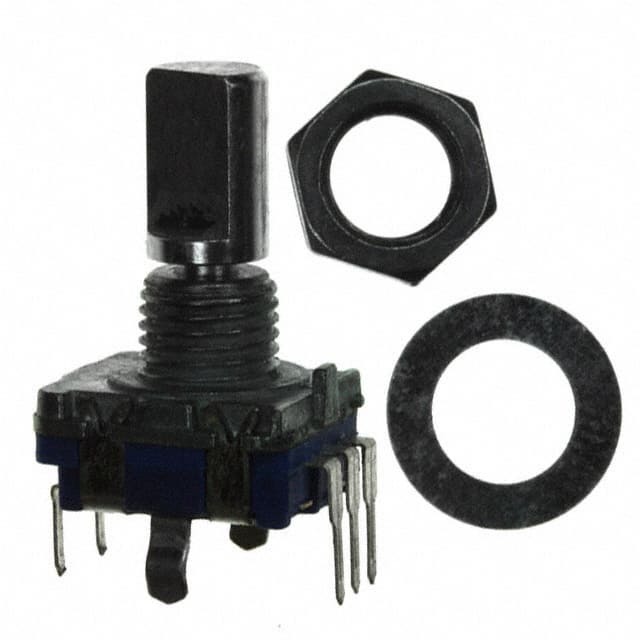

ACZ11BR1E-15FD1-20C

SKU: 17480

Manufacturer: CUI Devices

Mechanical Encoder Rotary Incremental Flat 0.02N.m Straight Quadrature Digital Square Wave 20PPR Through Hole PC Pin

840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8543.70.99.60
Automotive	No
PPAP	No
Number of Channels	2
Motion	Rotary
Shaft Style	Flat
Pulses per Revolution	20
Terminal Type	PC Pin
Maximum Operating Torque (N.m)	0.02
Mechanical Life (Cycles)	30000
Encoder Signal	Digital Square Wave
Programmability	No
Operating Supply Voltage-Max	5VDC
Operating Temperature-Min	-10
Operating Temperature-Max	65
Encoder Code	Quadrature
Encoder Reading	Incremental
Terminal Form	Through Hole
Body Orientation	Straight
Shaft Diameter (mm)	6
Length (mm)	11.7
