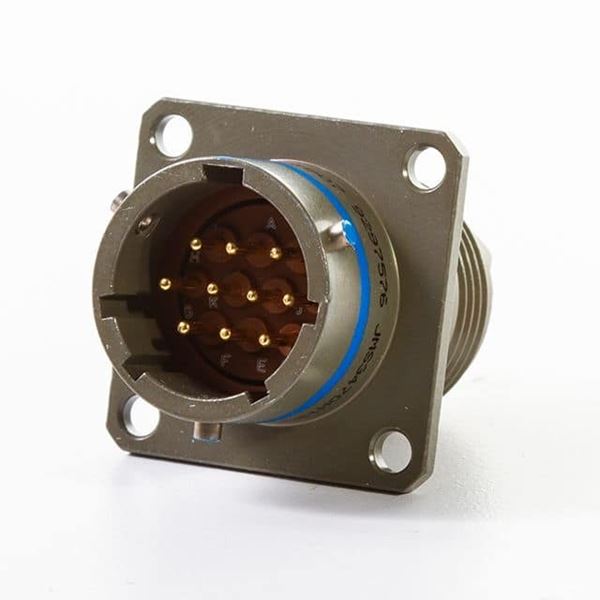

MS3476L20-41P

SKU: 158225

Manufacturer: Corsair Electrical Connectors

Conn Circular PIN 41 POS Crimp ST Cable Mount 41 Terminal 1 Port

2000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	No
PPAP	No
Military Standard	MIL-DTL-26482
Military Standard Series	Series II
Type	Circular
Gender	PL
Terminal Form	Cable Mount
Body Orientation	Straight
Polarization	N
Number of Ports	1
Number of Contacts	41
Number of Terminals	41
Contact Gender	PIN
Termination Method	Crimp
Shell Size / Insert Arrangement	20-41
Wire Size (AWG)	20-24
Less Contact	No
Contact Body Material	Copper Alloy
Contact Plating	Gold
Shell Body Material	Aluminum
Shell Plating	Electroless Nickel
Voltage Rating-Max	600VAC
Operating Temperature-Min	-55
Operating Temperature-Max	200
Mating Style	Bayonet Lock
Mating Cycle (Cycles)	500
Product Diameter (mm)	38.88
